Запчасти Case 465 (07-04) - HYDROSTATICS - TWO SPEED, VALVE ASSY (465 WITH PILOT CONTROL) (06) - POWER TRAIN

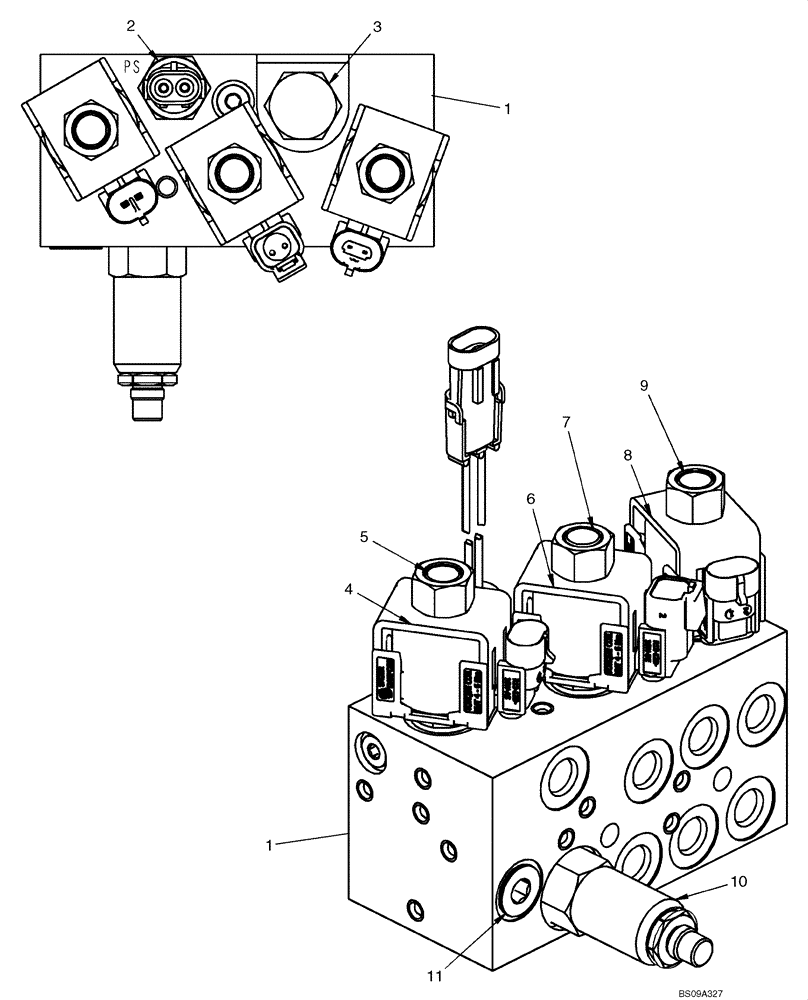

Схема запчастей Case 465 - (07-04) - HYDROSTATICS - TWO SPEED, VALVE ASSY (465 WITH PILOT CONTROL) (06) - POWER TRAIN
6
4
8
1
7
9
11
5
3
10
1
2

Артикул

Название

Примечание

Количество

1

87756436

BRAKE VALVE

Rel; Two Speed; Incl 2 - 15

1шт.

2

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

3

87614009

VALVE

Cartridge

1шт.

4

87756427

COIL

1шт.

5

87756430

VALVE

1шт.

6

87756425

COIL

Coil

1шт.

7

87756428

VALVE

1шт.

8

87756426

COIL

1шт.

9

87756429

VALVE

1шт.

10

87459301

VALVE

Sequence

1шт.

11

87426545

ORIFICE

.017 Sauer

1шт.

12

87614014

SEAL KIT

Solenoid Valve

1шт.

13

87614015

SEAL KIT

Cartridge Valve

1шт.

14

87484264

SERVICE KIT

Solenoid Valve Seal

1шт.

15

87484265

SERVICE KIT

Coil Nut And O-Ring

1шт.

Выбрано товаров: 15
