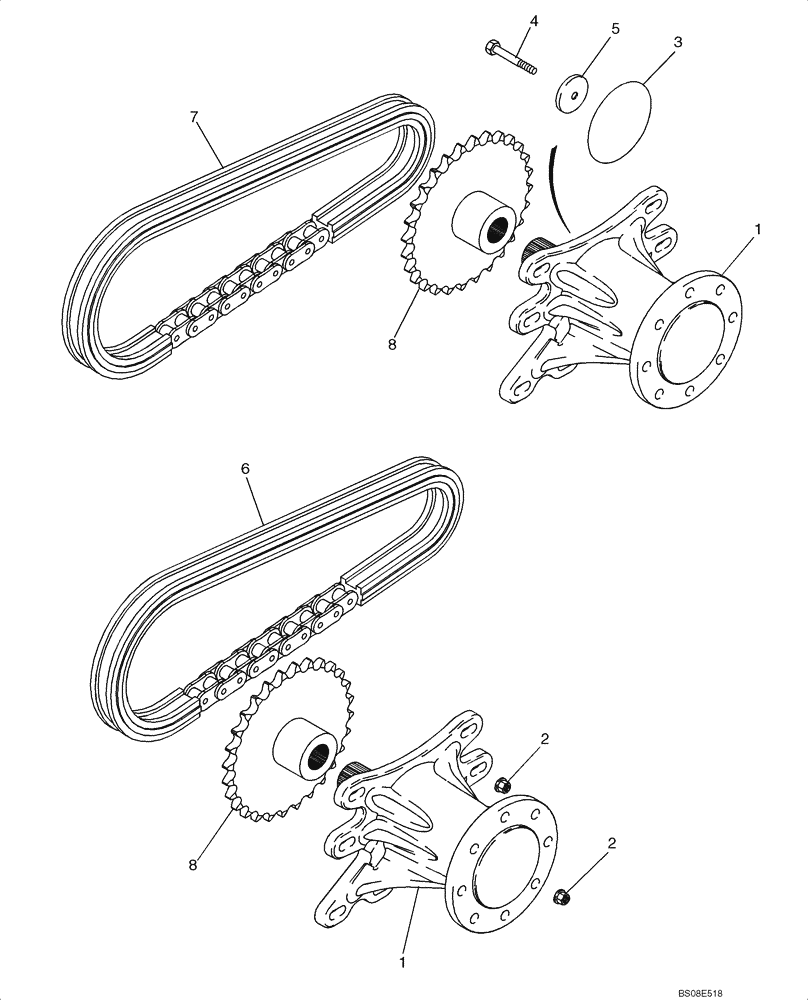

Запчасти Case 465 (06-36) - DRIVE LINE (06) - POWER TRAIN

1

339431A2

AXLE

See Figure 06-37

4шт.

339431A2R

REMAN-AXLE

REMANUFACTURED AXLE - NA Only

1шт.

339431A2C

CORE-AXLE

Return Number, AXLE - NA Only

1шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32-64шт.

2a

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16 Taper

32шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

Use Permatex ZPX24210

4шт.

ZPX24210

SEALANT, THREAD

10 ml

1шт.

5

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

6

87418344

CHAIN (CE)

120/58P, Rear Drive

2шт.

7

87418343

CHAIN (CE)

120/42P, Front Drive

2шт.

8

199037A2

SPROCKET ASSY.

28T

4шт.
