(06-15) - GEAR PUMP (WITHOUT HIGH FLOW)

Запчасти Case 465 (06-15) - GEAR PUMP (WITHOUT HIGH FLOW) (06) - POWER TRAIN

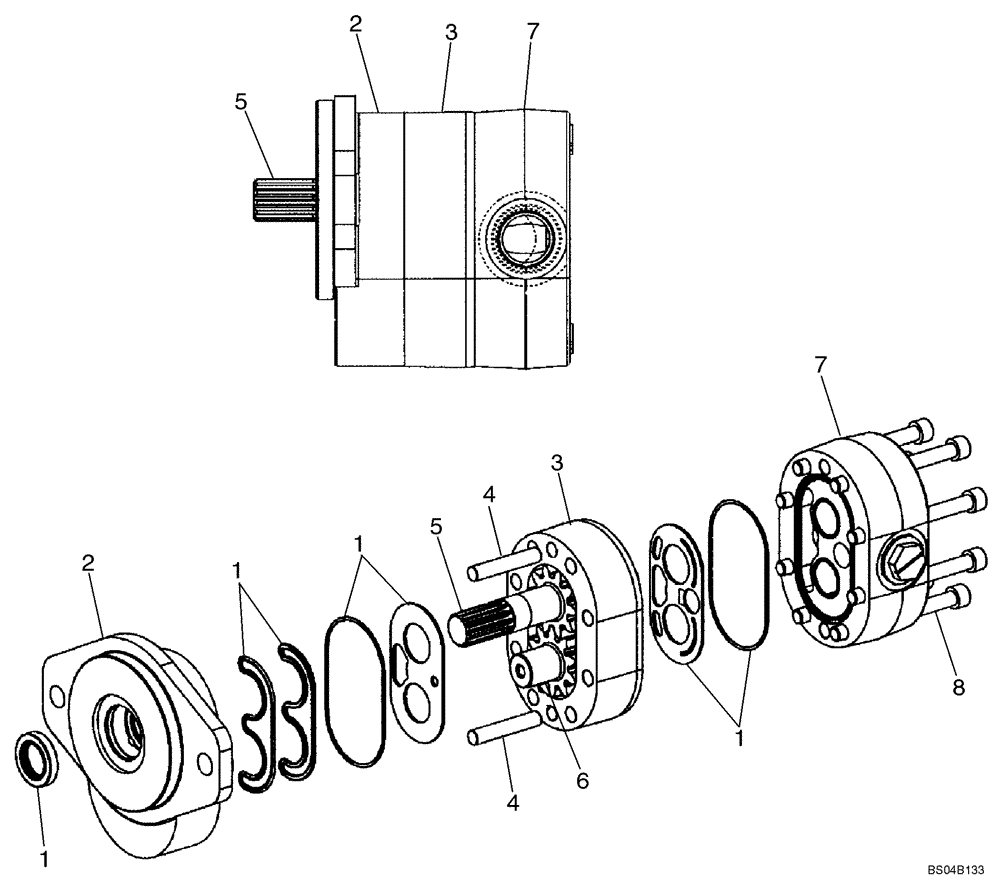

Схема запчастей Case 465 - (06-15) - GEAR PUMP (WITHOUT HIGH FLOW) (06) - POWER TRAIN
8
7
4
1
3
5
1
1
2
7
6
5
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8; Models Without High Flow

1шт.

87024695R

REMAN-HYD PUMP

465 TIER 3 ASN N7M452623 (1/08-3/11)

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87042214

SEAL KIT

Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
