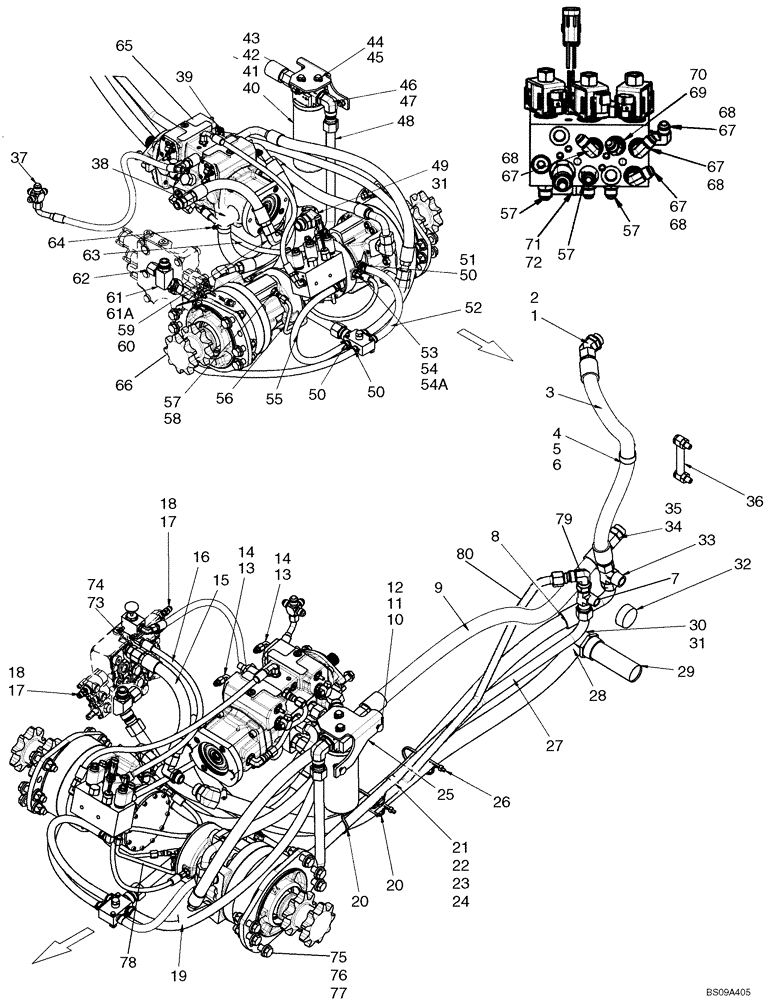

Запчасти Case 465 (06-11) - HYDROSTATICS - SUPPLY, RETURN AND DRAIN (PILOT CONTROL) (06) - POWER TRAIN

1

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87668625

HOSE

Oil Cooler Return, 855mm (33 21/32 in.)

1шт.

4

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

7

87690479

TEE

Male BR 37Fl 1.0 x .75 x .75 NPTF

1шт.

8

87547024

HOSE,25.4mm ID x 1553mm L, SAE 100R4

Charge Pump Supply, 1553mm (61 1/8 in.)

1шт.

9

87665168

HOSE,25.4mm ID x 1200mm L, SAE 100R4

Filter To Cooler, 1200mm (47 1/4 in.)

1шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

11

100016

NUT,M10 x 1.5, Cl 8

2шт.

12

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

13

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 14

2шт.

14

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

87547014

HOSE,19.05mm ID x 379mm L

Valve Supply, 379mm (14 15/16 in.)

1шт.

16

87547033

HOSE,9.65 mm ID x 720.00 mm

Dump Valve Drain

1шт.

17

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 18

3шт.

18

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

87547044

HOSE,15.88mm ID x 1061mm L

Pump Drain

1шт.

20

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tandem Pump Supply

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

122158A1

NUT,M8, U

2шт.

25

87707681

ANGLE

Filter Mounting

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

27

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

28

87547045

HOSE,31.75 mm ID x 790.00 mm

Loader Pump Supply

1шт.

29

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

30

87029969

HYD CONNECTOR

1шт.

31

87039085

HOSE CLAMP,32mm - 54mm

2шт.

32

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

33

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

34

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 35

1шт.

35

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

87374752

GAUGE

Liquid Level

1шт.

37

87546978

ADAPTER

1шт.

38

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

1шт.

39

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

1шт.

40

87430661

FILTER

Incl 41 - 43

1шт.

41

N13268

PRESSURE SWITCH

1шт.

42

87010593

ELEMENT

CASE Filter, Spin On

1шт.

43

87439984

FILTER HEAD

Assembly

1шт.

44

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

45

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

46

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 47

1шт.

47

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

48

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

49

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

50

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

51

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

1шт.

52

87029907

HOSE ASSY.

335mm (13 13/16 in.)

1шт.

53

87547026

HOSE

EH Supply Or Brake, 465mm (18 5/16 in.)

2шт.

54

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 54A

1шт.

54a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

55

87384126

HOSE ASSY.

Brake 250mm (9 27/32 in.)

1шт.

56

87665698

HYD TUBE,9.53 mm OD

Tee To Motor

2шт.

57

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 58

5шт.

58

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

59

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 60

1шт.

60

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

61

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 62

1шт.

61a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

62

219606

CAP,1-1/16" - 12 JIC

1шт.

63

87547035

HOSE,9.65 mm ID x 720.00 mm

Charge Pressure

1шт.

64

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

65

87546977

PUMP,46 CC

Rexroth, A22 360 Bar, 5.7mm Orifice; See Fig 06-23

1шт.

65

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

65

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

66

87349721

HYDRAULIC MOTOR,660CC

Drive; See Fig 06-31

2шт.

66

87349721R

REMAN-HYD MOTOR

465 - SKID STEER - SERIES 3 ASN N7M452623

2шт.

66

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

67

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 68

4шт.

68

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

69

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl 70

1шт.

70

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

71

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 72

1шт.

72

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

73

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 74

1шт.

74

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

75

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

76

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

77

86512555

NUT,M16 x 2, Cl 10

12шт.

78

87665699

HYD TUBE,9.53 mm OD

2-Speed Valve To Tee

1шт.

79

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

80

87665169

Oil Cooler Bypass; See Fig 06-14A

1шт.
