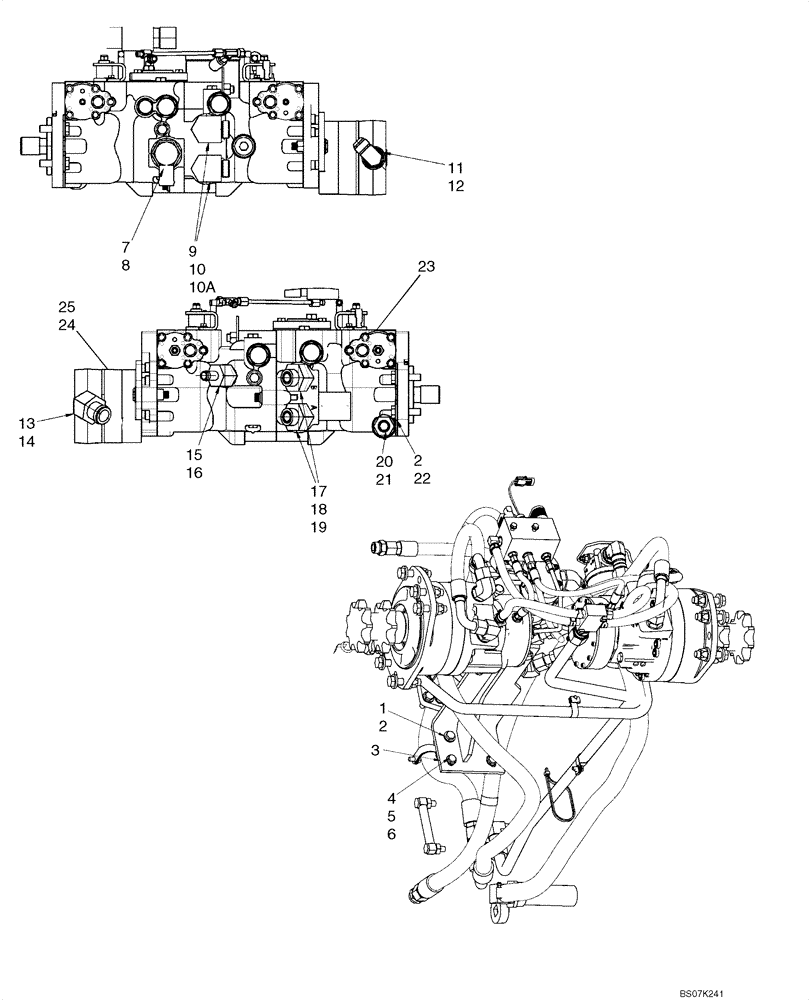

Запчасти Case 465 (06-09) - HYDROSTATICS - PUMP MOUNTING AND FITTINGS (06) - POWER TRAIN

1

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

2

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

3

87627383

SUPPORT

Pump

1шт.

4

122158A1

NUT,M8, U

2шт.

5

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

6

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

7

87418259

FITTING

Incl 8

1шт.

8

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

90; Incl 10, 10A

2шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

10a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 13

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 14

1шт.

14

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

15

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

Incl 16

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

87644282

ELBOW

Incl 18, 19

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

20

87033027

ADAPTER

Incl 21

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

23

87350025

PUMP,46 CC

Tandem; See Fig 06-17 - 06-22

1шт.

23

87350025R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

23

87350025C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

24

87024695

PUMP,36 CC

Gear; See Fig 06-15

1шт.

87024695R

REMAN-HYD PUMP

465 TIER 3 ASN N7M452623 (1/08-3/11)

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

25

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.
