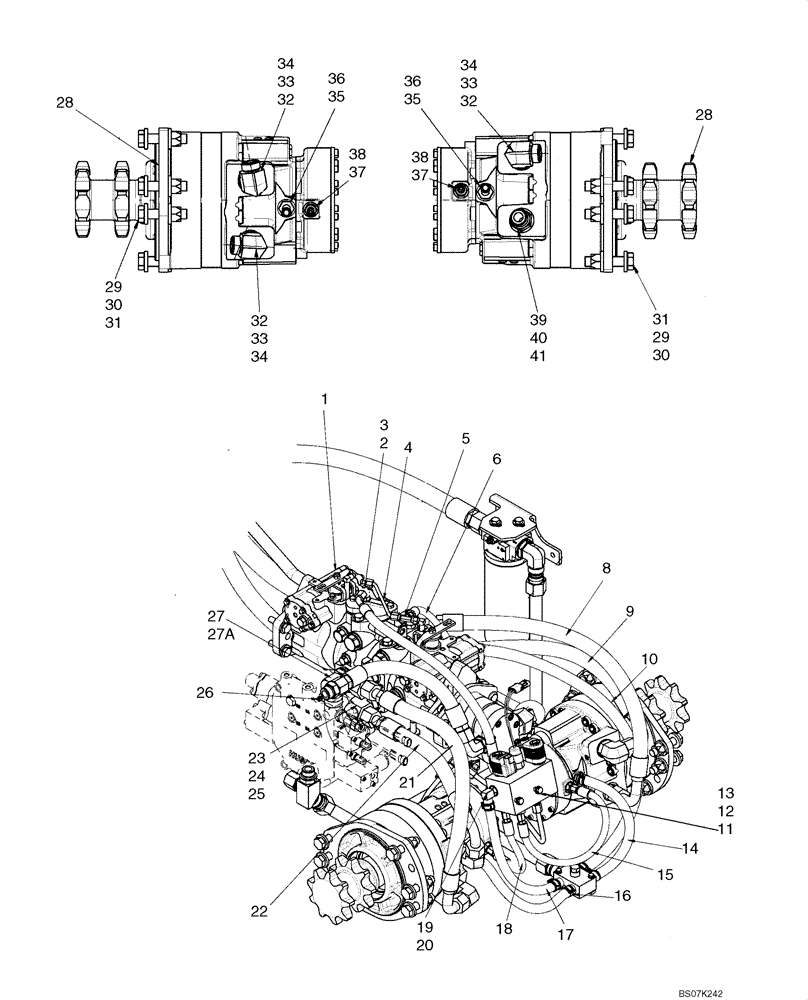

Запчасти Case 465 (06-08) - HYDROSTATICS - PUMP TO DRIVE MOTORS (06) - POWER TRAIN

1

87350024

PUMP

Tandem; Incl Tandem Pump (87350025) Fig 06-17 - 06-22 And Gear Pump (87024695) Fig 06-15

1шт.

1

87350025R

REMAN-HYD PUMP

Reman for New PN 87350024

1шт.

1

87350025C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87024695R

REMAN-HYD PUMP

465 TIER 3 ASN N7M452623 (1/08-3/11) Reman for New P/N 87350024

1шт.

1

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

5

87644282

ELBOW

2шт.

6

87641873

HOSE

Lockout, 770mm (30 5/16 in.)

1шт.

7

87641872

HOSE,9.53mm ID x 615mm L

Charge To Brake, 615mm (24 7/32 in.)

1шт.

8

87640186

HOSE,19.05mm ID x 790mm L, SAE 100R13

Loop, 790mm (31 3/32 in.)

1шт.

9

87640184

HOSE,19.05mm ID x 600mm L, SAE 100R13

Loop, 600mm (23 5/8 in.)

1шт.

10

87356896

HOSE ASSY.

Loop, 620mm (24 13/32 in.)

1шт.

11

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

12

9628098

NUT,M8 x 1.25, Cl 10

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

87029907

HOSE ASSY.

335mm (13 3/16 in.)

2шт.

15

87384128

HOSE ASSY.

460mm (18 1/8 in.)

1шт.

16

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

17

87384131

HOSE,12.7mm ID x 355mm L

355mm (14 in.)

1шт.

18

87384126

HOSE ASSY.

250mm (9 27/32 in.)

1шт.

19

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 20

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

87640185

HOSE,19.05mm ID x 730mm L, SAE 100R13

Loop 730mm (28 3/4 in.)

1шт.

22

87640190

HOSE,19.05mm ID x 465mm L, SAE 100R13

Loop 465mm (18 5/16 in.)

1шт.

23

87326965

90 ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

90 Adj -12 ORFS X 1-5/16-12 ORB; Incl 24, 25

2шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

26

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

27

87418259

FITTING

Incl 27A

1шт.

27a

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

28

87349721

HYDRAULIC MOTOR,660CC

Drive; See Fig 06-30

2шт.

28

87349721R

REMAN-HYD MOTOR

465 - SKID STEER - SERIES 3 ASN N7M452623

2шт.

28

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

29

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

30

86512555

NUT,M16 x 2, Cl 10

12шт.

31

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

32

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 33, 34

3шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

35

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 36

2шт.

36

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

37

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 38

3шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

39

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 40, 41

1шт.

40

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
