Запчасти Case 450 (07-03) - TWO SPEED, VALVE ASSY, IF USED (07) - BRAKES

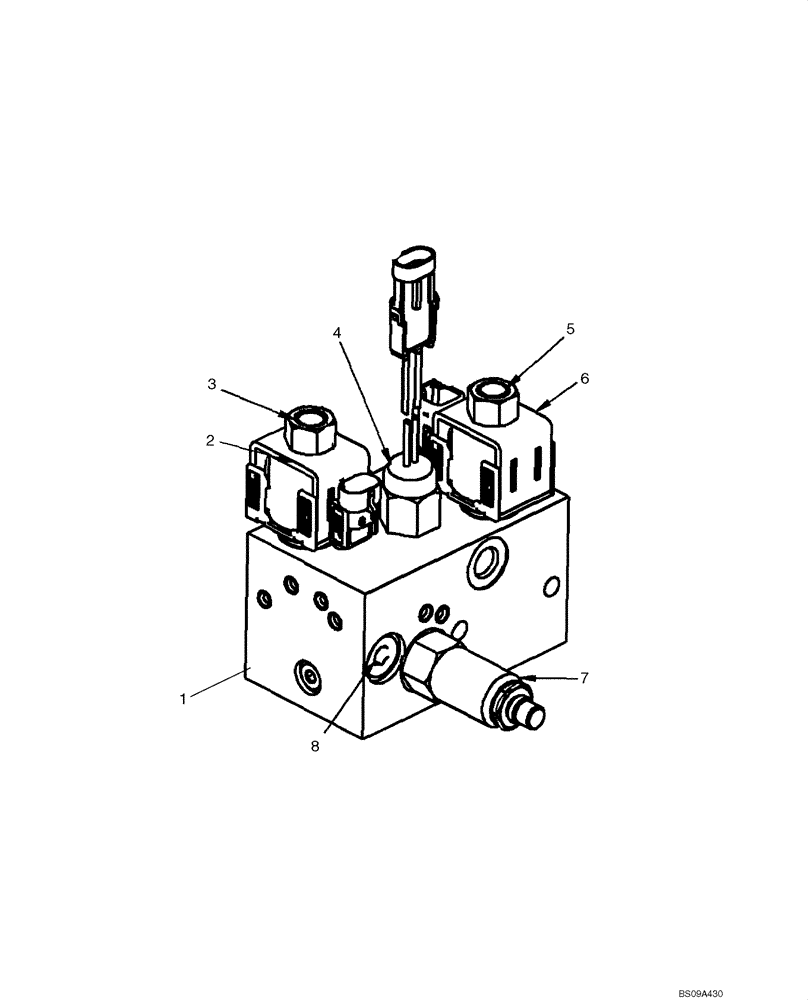

Схема запчастей Case 450 - (07-03) - TWO SPEED, VALVE ASSY, IF USED (07) - BRAKES
5
3
8
2
1
7
6
4

Артикул

Название

Примечание

Количество

1

87756432

BRAKE VALVE

2 Speed Valve Brake Rel; Incl 2-10, Supplier Part 11039596

1шт.

2

87756427

COIL

1шт.

3

87756430

VALVE

Valve Solenoid

1шт.

4

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

5

87756428

VALVE

Valve Solenoid Brake

1шт.

6

87756425

COIL

Coil

1шт.

7

87459301

VALVE

Sequence

1шт.

8

87426545

ORIFICE

M12

1шт.

9

87484264

SERVICE KIT

Solenoid Valve Seal

1шт.

10

87484265

SERVICE KIT

Coil Nut And O-Ring

1шт.

Выбрано товаров: 10
