Запчасти Case 450 (06-18) - HYDROSTATICS - RESONATOR (06) - POWER TRAIN

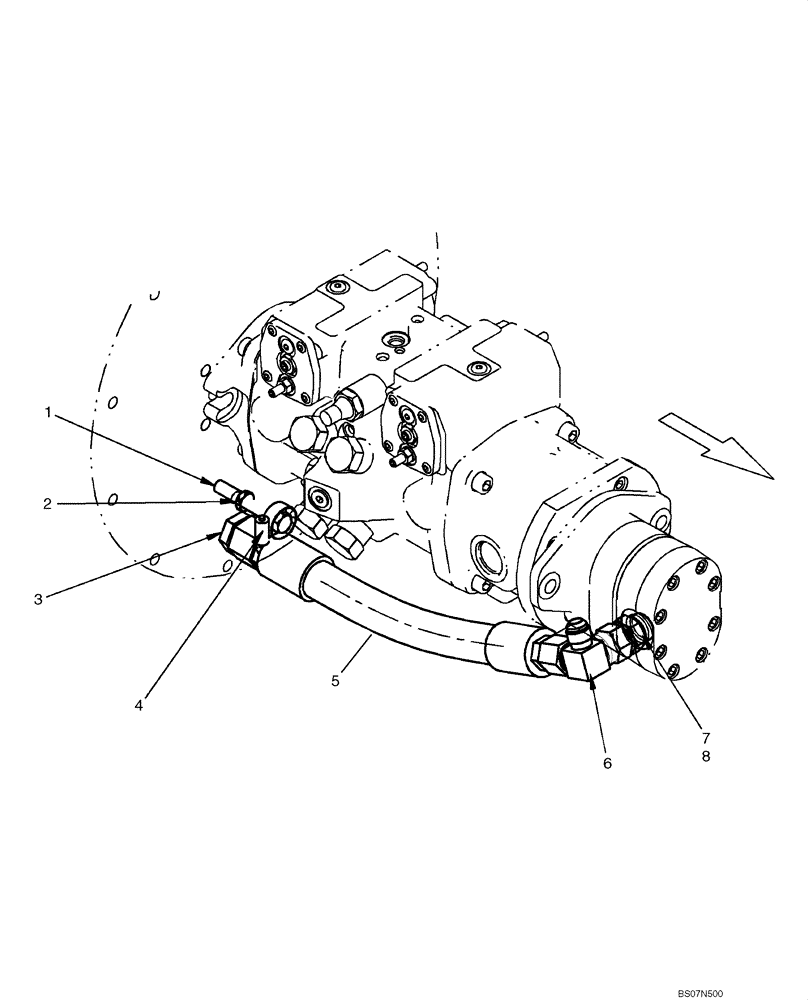

Схема запчастей Case 450 - (06-18) - HYDROSTATICS - RESONATOR (06) - POWER TRAIN
5
3
1
4
7
2
8
6

Артикул

Название

Примечание

Количество

1

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

Used With Pilots

1шт.

2

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

Used With Pilots

1шт.

3

9790527

PLUG,1-5/16" - 12 JIC

1шт.

4

87039085

HOSE CLAMP,32mm - 54mm

Used With Pilots

1шт.

5

87462103

HOSE ASSY.

Resonator

1шт.

6

87025944

TEE

1шт.

7

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 8

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated; Used Without Pilots

1шт.

Выбрано товаров: 9
