Запчасти Case 450 (06-17) - HYDROSTATICS - PUMP TO DRIVE MOTORS (450 WITH PILOT CONTROL) (06) - POWER TRAIN

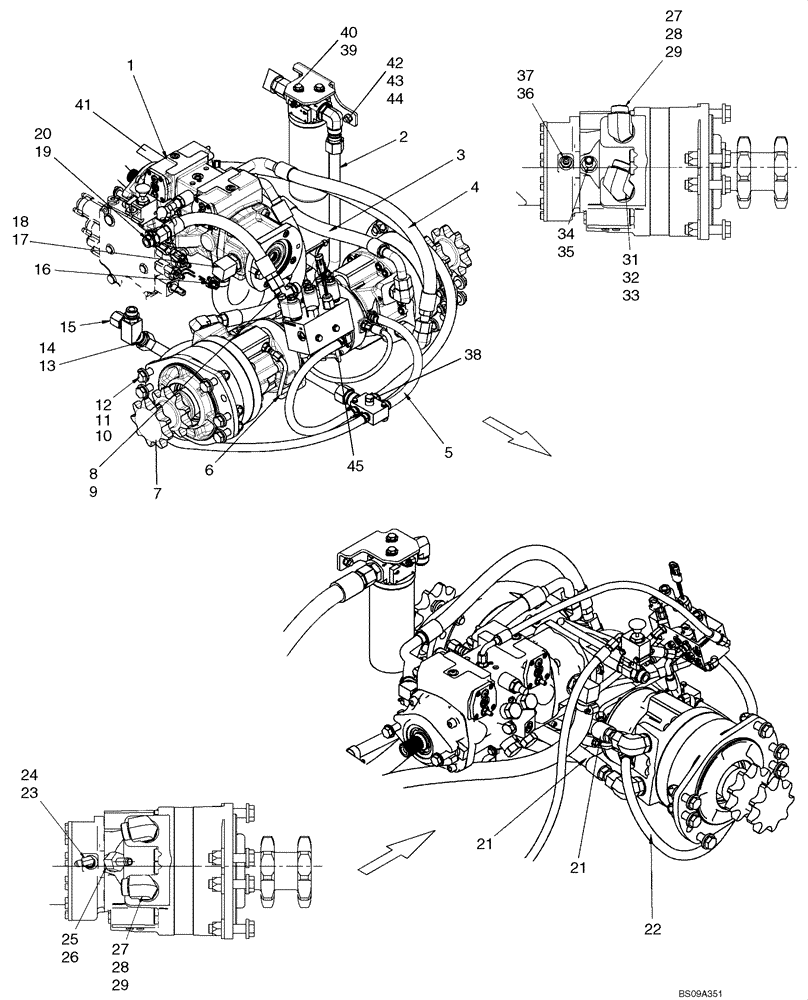

Схема запчастей Case 450 - (06-17) - HYDROSTATICS - PUMP TO DRIVE MOTORS (450 WITH PILOT CONTROL) (06) - POWER TRAIN
10
28
45
15
31
32
17
34
38
39
5
25
29
12
22
26
7
9
8
35
27
40
1
43
24
2
20
27
14
6
28
11
44
23
16
18
21
4
19
13
37
42
21
29
36
3
41
33

Артикул

Название

Примечание

Количество

1

87546977

PUMP,46 CC

Rexroth Pump, A22 360 Bar, 5.7mm Orifice; See Fig 06-22

1шт.

1

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Tube, Valve Outlet

1шт.

3

87640189

HOSE

Hose, 495mm (19 1/2 in.)

1шт.

4

87640187

HOSE

Hose, 720mm (28 11/32 in.)

1шт.

5

87029907

HOSE ASSY.

Hose, 335mm (13 3/16 in.)

1шт.

6

87665698

HYD TUBE,9.53 mm OD

Tube, Tee To Motor

2шт.

7

87349721

HYDRAULIC MOTOR,660CC

Drive Motor

2шт.

7

87349721R

REMAN-HYD MOTOR

450 - SKID STEER, TIER 3, P.I.N. N7M464019 & AFTER

2шт.

7

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 9

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

86625258

WASHER,17.5mm ID x 34mm OD x 5mm Thk

24шт.

11

86512555

NUT,M16 x 2, Cl 10

12шт.

12

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

12шт.

13

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 14

1шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

219606

CAP,1-1/16" - 12 JIC

1шт.

16

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

17

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 20

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

87640182

HOSE,19.05mm ID x 580mm L, SAE 100R13

Hose, 580mm (22 13/16 in.)

2шт.

22

87665697

HOSE,0.50" ID

Multi Valve Drain

1шт.

23

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

87372529

45 ELBOW,1/2" Barb x 3/4"-16 ORB

Incl. 26

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl. 28, 29

3шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Elbow, 90 Adj Long 3/4 ORFS, 3/4 ORB; Incl 32, 33

1шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

87010108

FITTING,1/2" Hose Bead x 3/4" - 16 ORB

Incl 35

1шт.

35

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 37

1шт.

37

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

CTB 24mm

1шт.

39

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

40

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

41

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

42

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

43

100016

NUT,M10 x 1.5, Cl 8

2шт.

44

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

45

87665699

HYD TUBE,9.53 mm OD

2-Speed Valve To Tee

1шт.

Выбрано товаров: 48
