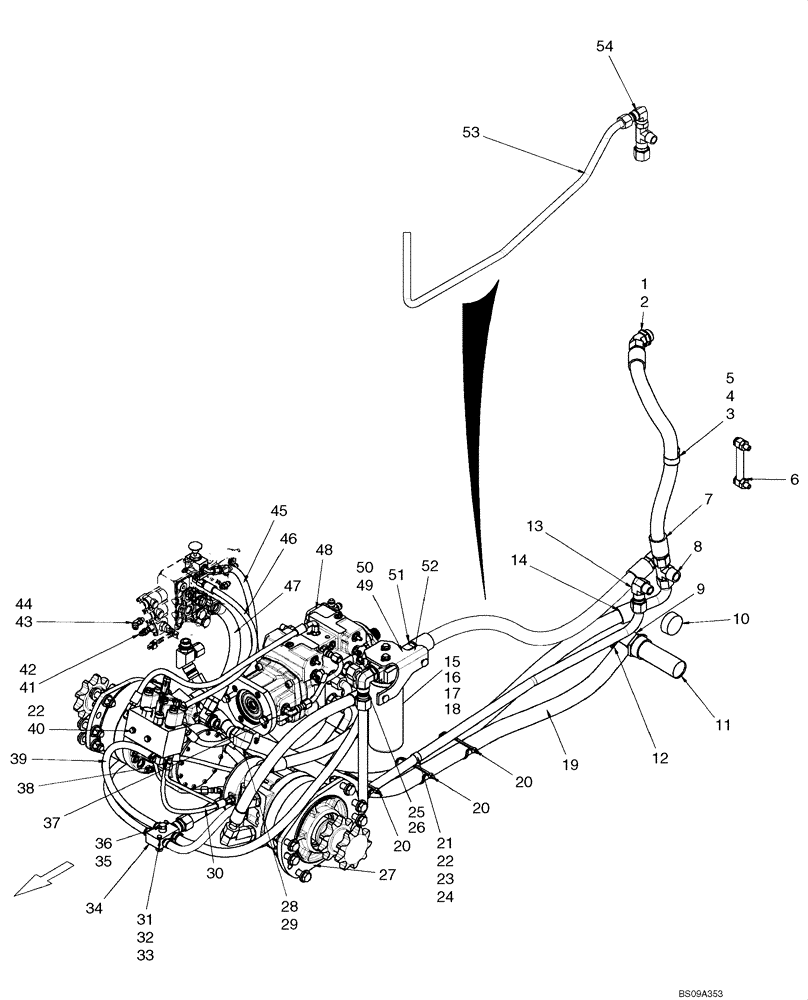

Запчасти Case 450 (06-16) - HYDROSTATICS - SUPPLY AND RETURN (450 WITH PILOT CONTROL) (06) - POWER TRAIN

1

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

6

87374752

GAUGE

Liquid Level Gauge

1шт.

7

87659238

HOSE

Hose, Oil Cooler Return, 825mm (32 1/2 in.)

1шт.

8

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

9

87029969

HYD CONNECTOR

1шт.

10

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

11

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

12

87039085

HOSE CLAMP,32mm - 54mm

2шт.

13

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

13

87690479

TEE

Male 37Fl 1.0 x .75 x .75NPTF

1шт.

14

87547024

HOSE,25.4mm ID x 1553mm L, SAE 100R4

Hose, Charge Pump Supply, 1553mm (61 1/8 in.)

1шт.

15

87430661

FILTER

Hydraulic Filter; Incl 16 - 18

1шт.

16

N13268

PRESSURE SWITCH

1шт.

17

87010593

ELEMENT

Filter Element, Spin On

1шт.

18

87439984

FILTER HEAD

Head Assembly

1шт.

19

87348364

HOSE ASSY.

Hose, Loader Pump Supply, 1380mm (54 5/16 in.)

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

122158A1

NUT,M8, U

2шт.

25

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 26

1шт.

26

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

87349721

HYDRAULIC MOTOR,660CC

Drive Motor

2шт.

27

87349721R

REMAN-HYD MOTOR

450 - SKID STEER, TIER 3, P.I.N. N7M464019

2шт.

27

87349721C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

28

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

87547026

HOSE

Hose, EH Supply Or Brake, 465mm (18 5/16 in.)

2шт.

31

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

33

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

34

87437351

MANIFOLD

Oil Return Manifold

1шт.

35

76349

PLUG,9/16" - 18 ORB

Incl. 36

1шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

38

87384126

HOSE ASSY.

Hose, Brake 250mm (9 27/32 in.)

1шт.

39

87547047

HOSE,12.7mm ID x 520mm L

Multi Valve Drain

1шт.

40

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

41

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 42

3шт.

42

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

43

87593247

ELBOW

Incl 44

1шт.

44

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

45

87547043

HOSE,9.53mm ID x 773mm L

Dump Valve Supply

1шт.

46

87547033

HOSE,9.65 mm ID x 720.00 mm

Dump Valve Drain

1шт.

47

87547015

HOSE

Hose, Valve Supply, 412mm (16 7/32 in.)

1шт.

48

87546977

PUMP,46 CC

Rexroth Pump, A22 360 Bar, 5.7mm Orifice; See Fig 06-22

1шт.

48

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump; For N.A. only

1шт.

48

87546977C

CORE-HYDRAULIC PUMP

Return Number, for N.A. Only

1шт.

49

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 50

1шт.

50

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

51

87659239

HOSE

Hose, Filter To Cooler, 1140mm (44 7/8 in.)

1шт.

52

87707681

ANGLE

1шт.

53

87659241

Oil Cooler Bypass; See Fig 06-18A

1шт.

54

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.
