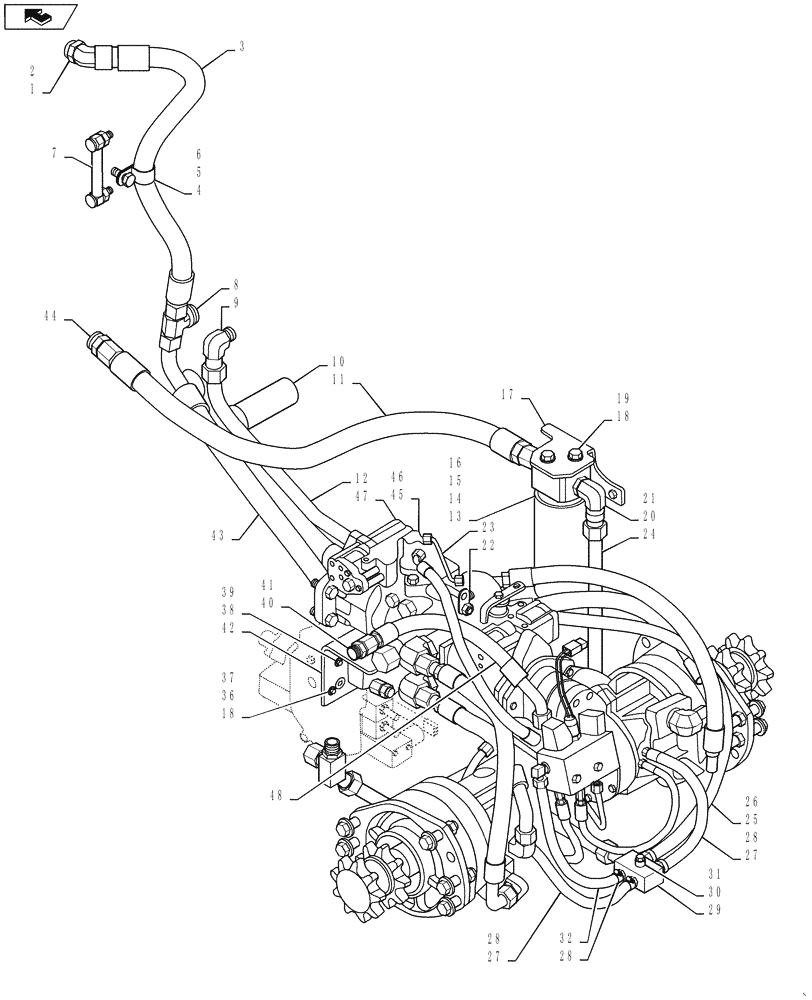

Запчасти Case 450 (06-14) - HYDROSTATICS - SUPPLY AND RETURN (450) (06) - POWER TRAIN

1

86977688

45 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 2

1шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87659238

HOSE

Hose, Oil Cooler Return, 825mm (32 1/2 in.)

1шт.

4

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

87374752

GAUGE

Liquid Level Gauge

1шт.

8

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

9

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

10

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

11

87659239

HOSE

Hose, Filter To Cooler, 1140mm (44 7/8 in.)

1шт.

12

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Tube, Case Drain

1шт.

13

87430661

FILTER

Incl 14 - 16

1шт.

14

N13268

PRESSURE SWITCH

1шт.

15

87010593

ELEMENT

Filter

1шт.

16

87439984

FILTER HEAD

Filter Head

1шт.

17

87707681

ANGLE

Filter Mounting Bracket

1шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 21

1шт.

21

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

23

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

24

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Tube, Valve Outlet

1шт.

25

87357018

HOSE ASSY.

Hose, 790mm (31 3/32 in.)

1шт.

26

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

27

87029907

HOSE ASSY.

Hose, 335mm (13 3/16 in.)

2шт.

28

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

29

87437351

MANIFOLD

Return Oil Manifold

1шт.

30

76349

PLUG,9/16" - 18 ORB

Incl. 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

87384131

HOSE,12.7mm ID x 355mm L

Hose, 355mm (14 in.)

1шт.

33

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 34

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

219606

CAP,1-1/16" - 12 JIC

1шт.

36

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

37

122158A1

NUT,M8, U

2шт.

38

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

39

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

40

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 41

1шт.

41

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

42

87627383

SUPPORT

Pump Support

1шт.

43

87361407

HOSE ASSY.

Hose, Pump Suction, 1310mm (51 9/16 in.)

1шт.

44

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

2шт.

45

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 46

2шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

47

87350024

PUMP

1шт.

47

87350025R

REMAN-HYD PUMP

Reman for New PN 87350024

1шт.

47

87350025C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87024695R

REMAN-HYD PUMP

450 TIER 3, P.I.N. N7M464019 & AFTER (1/08-3/11) Reman for New P/N 87350024

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

48

87348363

HOSE ASSY.

Loader Valve Supply

1шт.
