Запчасти Case 450 (04-16) - CONTROLS, LEFT HAND - HANDLE; IF USED, SEE ADAPTER, REF 1 (04) - ELECTRICAL SYSTEMS

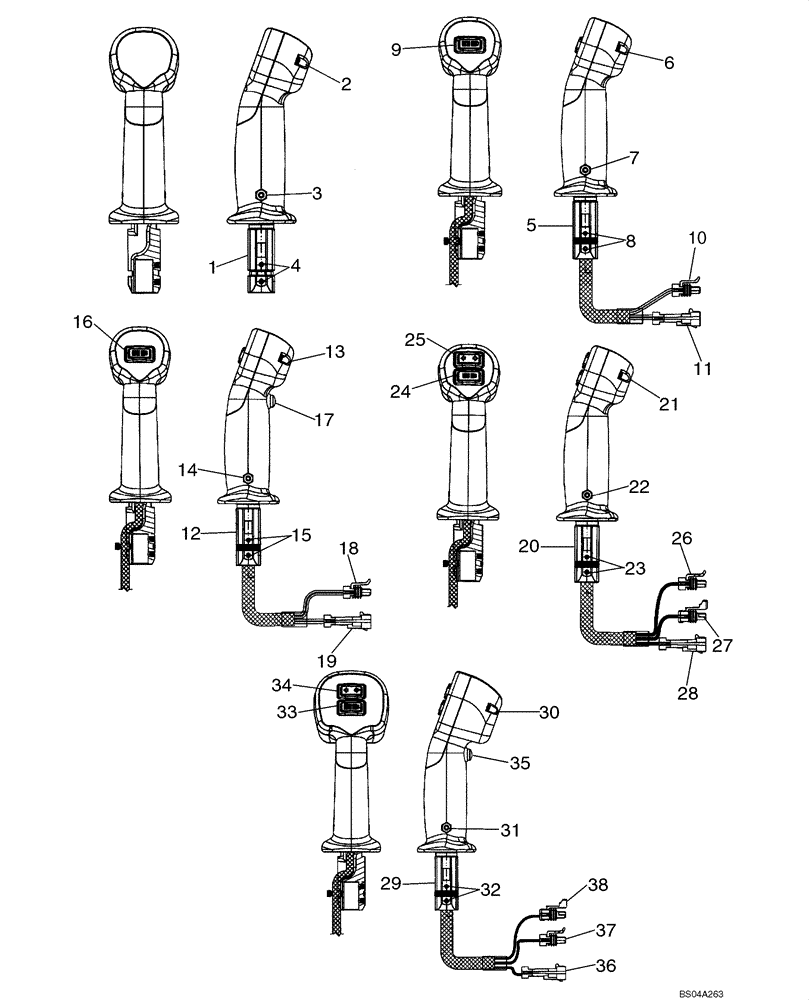

Схема запчастей Case 450 - (04-16) - CONTROLS, LEFT HAND - HANDLE; IF USED, SEE ADAPTER, REF 1 (04) - ELECTRICAL SYSTEMS
20
30
8
34
13
29
10
22
9
31
4
24
21
6
2
14
18
32
26
15
3
38
36
11
35
33
37
28
16
19
23
12
1
17
7
25
5
27

Артикул

Название

Примечание

Количество

HANDLE WITHOUT SWITCHES

1шт.

87424016

HANDLE

Control; No Switches; Incl. 1 - 4; Replaced By 87458322, See Figure 04-16A

1шт.

1

87426999

ADAPTER

Mount

1шт.

2

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

3

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

4

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

HANDLE WITH HYDRAULIC ATTACHMENT SWITCH

1шт.

87440089

HANDLE

Hydraulic Attachment; Incl. 5 - 10; Replaced By 87458326, See Figure 04-16A

1шт.

5

87426999

ADAPTER

Mount

1шт.

6

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

7

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

8

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

9

87440118

SWITCH

Hydraulic Attachment

1шт.

10

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

11

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

HANDLE WITH HYDRAULIC ATTACHMENT, TWO SPEED SWITCH

1шт.

87440090

HANDLE

Hydraulic Attachment, Two Speed Switch; Incl. 12 - 19; Replaced By 87458327, See Figure 04-16A

1шт.

12

87426999

ADAPTER

Mount

1шт.

13

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

14

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

15

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

17

87427352

SWITCH

Trigger; On/Off; Two Speed

1шт.

16

87440118

SWITCH

Hydraulic Attachment

1шт.

18

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

19

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

HANDLE WITH HYDRAULIC ATTACHMENT, TURN SIGNAL SWITCH

1шт.

87440091

HANDLE

Hydraulic Attachment, Turn Signal; Front Electric; Incl. 20 - 28; Replaced By 87458328, See Figure 04-16A

1шт.

20

87426999

ADAPTER

Mount

1шт.

21

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

22

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

23

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

24

87440118

SWITCH

Hydraulic Attachment

1шт.

25

87427353

SWITCH

Rocker; Turn Signal

1шт.

26

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

27

256344A1

CONNECTOR, ELEC

CONNECTOR

1шт.

28

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

HANDLE WITH HYDRAULIC ATTACHMENT, TURN SIGNAL, TWO SPEED SWITCH

1шт.

87440092

HANDLE

With Hydraulic Attachment, Turn Signal, Two Speed; Incl. 29 - 38; Replaced By 87458329, See Figure 04-16A

1шт.

29

87426999

ADAPTER

Mount

1шт.

30

86837247

SCREW,#4-40 x 1 1/2", w/LW

Faceplate

2шт.

31

87427350

SCREW,Hex, #10 - 32 x 5/16"

Grip

2шт.

32

87564724

SET SCREW,Hex Skt, #10 - 32 x 1/4"

SET SCREW, #10-32 x 1/4 CONE AST PHC

2шт.

33

87440118

SWITCH

Hydraulic Attachment

1шт.

34

87427353

SWITCH

Rocker; Turn Signal

1шт.

35

87427352

SWITCH

Trigger; On/Off; Two Speed

1шт.

36

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

37

256342A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

38

256344A1

CONNECTOR, ELEC

CONNECTOR

1шт.

Выбрано товаров: 48
