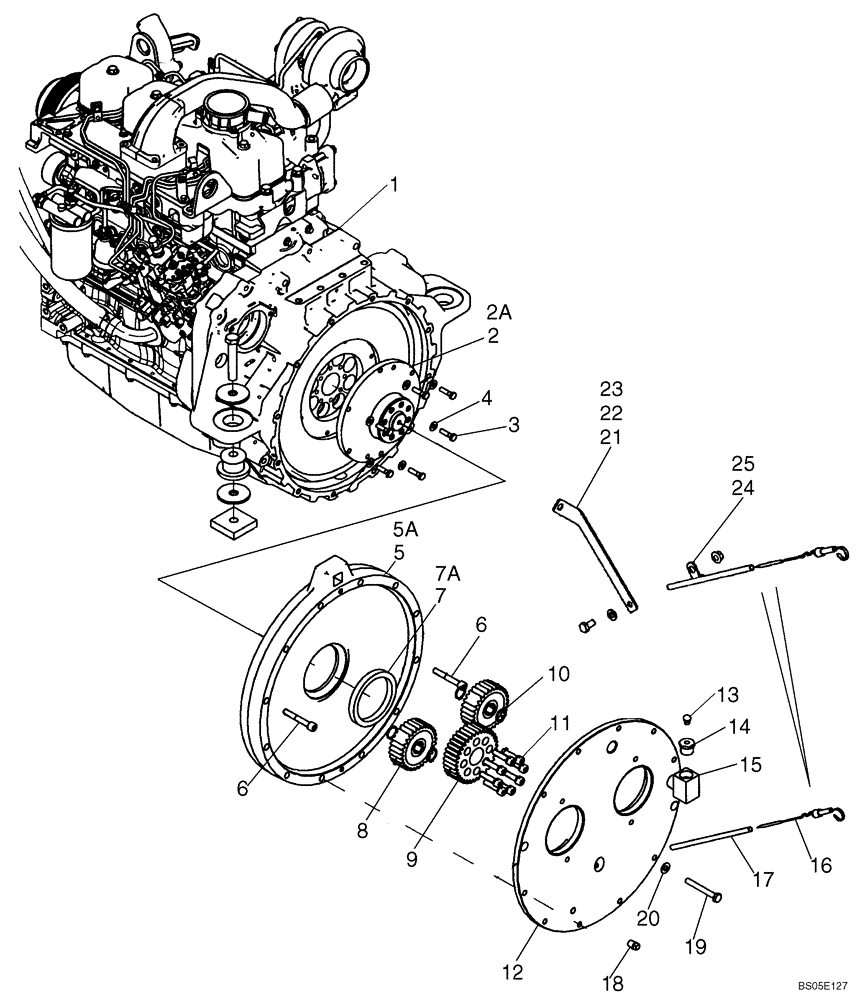

Запчасти Case 450 (02-07) - ENGINE - PUMP DRIVE (SPLIT PUMP CONFIGURATION) (02) - ENGINE
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
MODELS WITH SPLIT PUMP CONFIGURATION
1шт.
1
87039487
ENGINE
1шт.
.
BSN N7M458414, N.A. Only
1шт.
1
87039487R
REMAN-REPLACEMENT EN,66kW, 4.5L, 4 Cylinders, W/ Turbocharger
450, T2 Eng., Aspiration LTC, PIN N7M458414 & Prior, 450CT, T2 Eng., Aspiration LTC
1шт.
1
87039487C
CORE-REPLACEMENT ENG
Return Number
1шт.
.
BSN N7M464018, N.A. Only
1шт.
1
84281976R
REMAN-BASIC ENGINE,4 Cylinders
450, T2 Eng., Aspiration LTC, PIN N7M458414 & Prior, 450CT, T2 Eng., Aspiration LTC
1шт.
1
84281976C
CORE-BASIC ENGINE,4 Cylinders
Return Number
1шт.
87638777
SERVICE KIT
Conversion Kit, Split Pump To In-Line Pump; See Fig 02-07A
1шт.
2
87049924
SPACER
Used With Ref 5, 7
1шт.
2a
87462294
SPACER
Used With Ref 5A, 7A
1шт.
3
43235
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
6шт.
5
87053351
BOX
Splitter; Used With Ref 2, 7
1шт.
5a
87462295
BOX
Splitter; Used With Ref 2A, 7A
1шт.
6
863-10070
HEX SOC SCREW,M10 x 70mm, Cl 12.9
2шт.
7
87462626
SEAL
Used With Ref 2, 5; Replaces 9790499; See Service Bulletin NSL SB 006 06
1шт.
7a
87462383
SEAL
Used With Ref 2A, 5A; See Service Bulletin NSL SB 006 06
1шт.
8
9701486
GEAR
29T
2шт.
9
87051053
GEAR
Pump Drive
1шт.
10
271877
SNAP RING,#93, Ext
4шт.
11
718523
SCREW,Hex Soc Hd, M10 x 40, 8.8
8шт.
12
87053352
COVER
Splitter Box
1шт.
13
46566
BREATHER
Air Vent
1шт.
14
88873
BUSHING
3/4 To 1/8
1шт.
15
217-1020
90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male
1шт.
16
9635238
INDICATOR
Oil Indicator; If Used
1шт.
17
86606076
TUBE,9.525 mm OD x 262 mm L
Dipstick; If Used
1шт.
18
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
19
120073
BOLT,Hex, M10 x 86.58mm, Cl 8.8
10шт.
21
87462692
BRACKET
Oil Dipstick Bracket; If Used
1шт.
22
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
1шт.
23
140017
WASHER,M10 x 20mm OD x 2mm Thk
1шт.
24
86639010
CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type
1шт.
25
43435
FLANGE NUT,Hex, M10 x 1.5
1шт.
Выбрано товаров: 36
