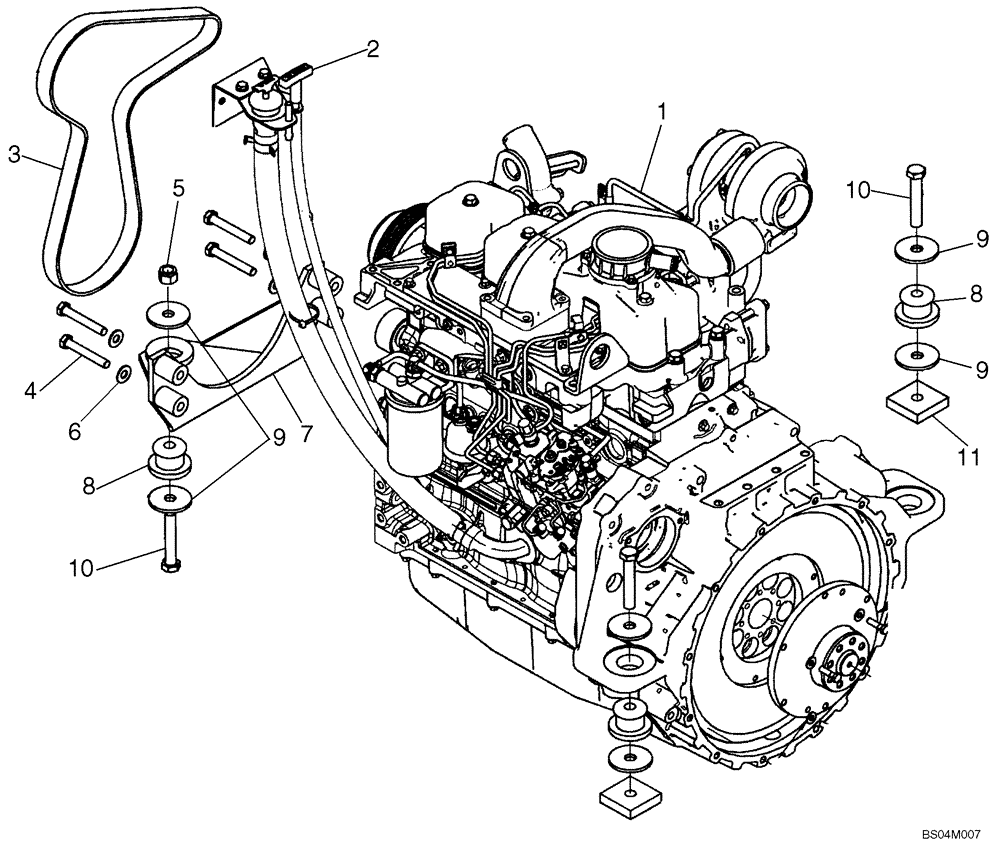

Запчасти Case 450 (02-06) - ENGINE - MOUNTING (02) - ENGINE

1

87039487

ENGINE

1шт.

.

BSN N7M465019, N.A. Only

1шт.

1

87039487R

REMAN-REPLACEMENT EN,66kW, 4.5L, 4 Cylinders, W/ Turbocharger

450, T2 Eng., Aspiration LTC, PIN N7M458414 & Prior, 450CT, T2 Eng., Aspiration. LTC

1шт.

1

87039487C

CORE-REPLACEMENT ENG

Return Number

1шт.

.

BSN N7M464019 , N.A. Only

1шт.

1

84281976R

REMAN-BASIC ENGINE,4 Cylinders

450, T2 Eng.,Aspiration LTC, PIN N7M458414 & Prior, 450CT, T2 Eng.,Aspiration LTC

1шт.

1

84281976C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

2

REF

INSTRUCTION

Remote Oil Fill; See Figure 02-06A

1шт.

3

86982450

V-BELT

CNH Name And Part Number On Belt

1шт.

3

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

1шт.

4

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

1шт.

6

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

7

87041763

ENGINE MOUNT

1шт.

8

A140221

MOUNTING PARTS

3шт.

9

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

6шт.

10

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

3шт.

11

390350A1

PLATE

2шт.
