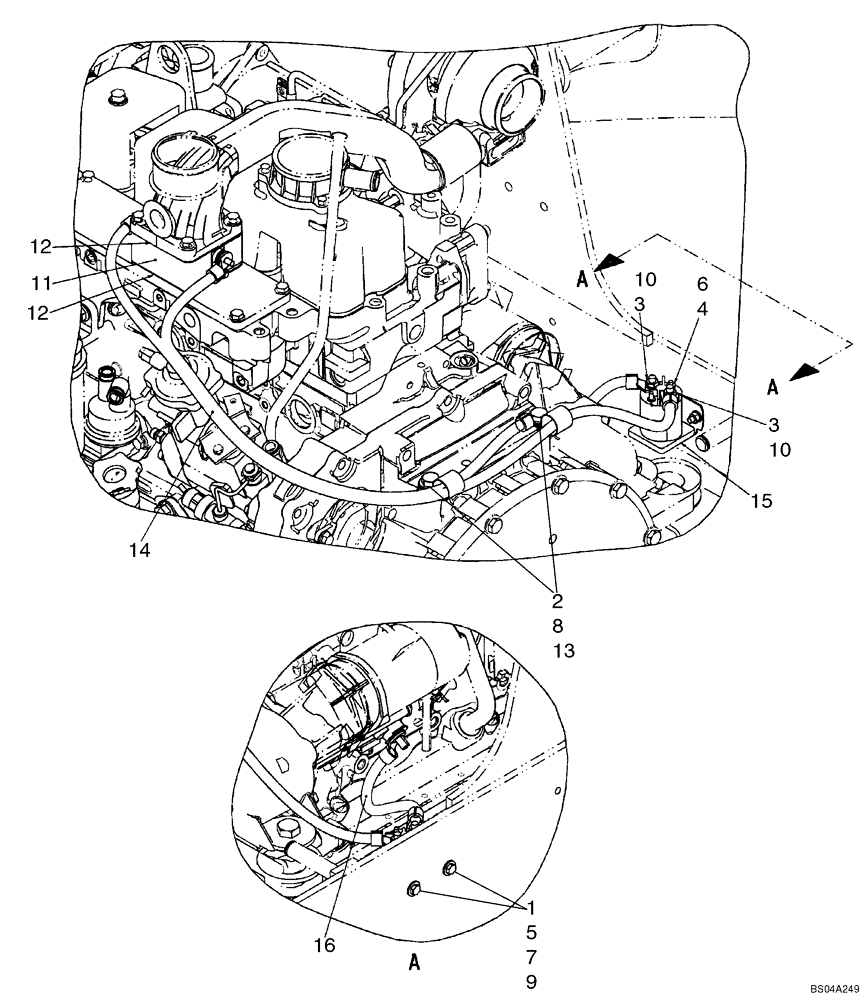

Запчасти Case 450 (02-05) - GRID HEATER (02) - ENGINE

1

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

2

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

5

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

6

87825

NUT,#10-32

1шт.

7

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

10

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

11

82017872

HEATER

Grid

1шт.

12

86014151

GASKET,93mm L x 98mm L

2шт.

13

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

14

87030820

CABLE

Grid Heater

1шт.

15

87406968

SOLENOID SWITCH

Grid Heater

1шт.

16

87047862

CABLE,595mm L

Grid Heater

1шт.

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.
