REF
INSTRUCTION

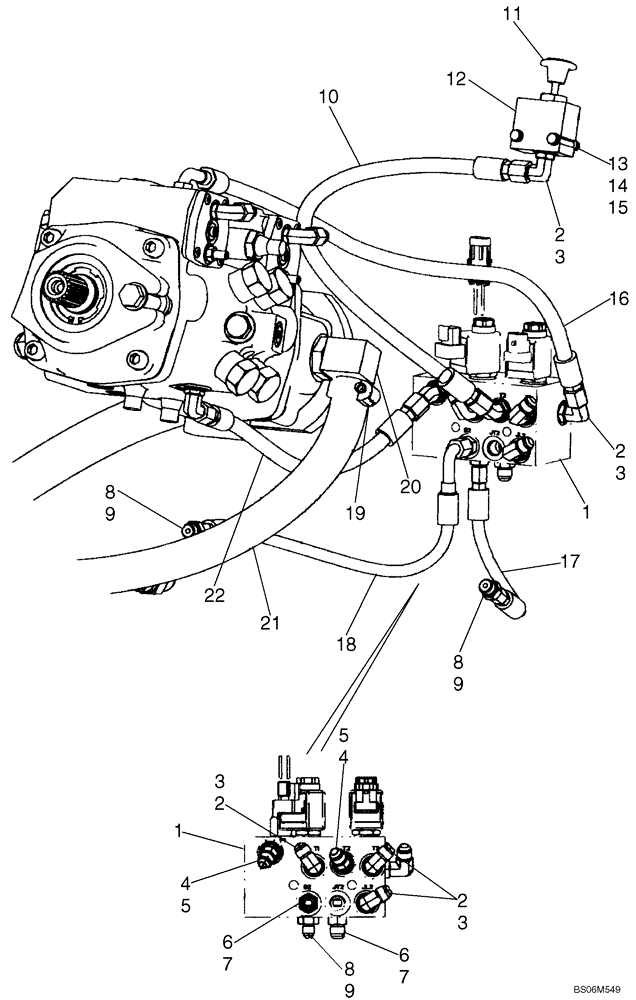

450 WITH PILOT CONTROL
1шт.
1
87546971
HYDRAULIC VALVE
Multi-Valve, Single Speed; See Figure 06-11C
1шт.
1
87546972
HYDRAULIC VALVE
Multi-Valve, Two Speed; See Figure 06-11D
1шт.
2
76344
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 3
4шт.
3
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
4
330346
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
Incl. 4A
2шт.
4a
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
5
87573371
ADAPTER
Incl. 5A, 5B
1шт.
5a
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
5b
9993141
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
6
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 7
2шт.
7
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
8
139398
HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC
Incl. 9
3шт.
9
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
10
87547033
HOSE,9.65 mm ID x 720.00 mm
Dump Valve Drain
1шт.
11
87568435
DECAL
Boom Overide; See Figure 09-43B
1шт.
12
87546973
VALVE
Boom Overide; If Used
1шт.
12
87604076
VALVE, EXHAUST, OVER
Boom Overide; If Used
1шт.
13
120056
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
2шт.
14
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
15
87030561
NUT,M6 x 1, Cl 8
2шт.
16
87547040
HOSE
706 mm (27.8 in); DA Pressure
1шт.
17
87384126
HOSE ASSY.
Brake
1шт.
18
87547026
HOSE
465 mm (18.3 in) E-H Supply Or Brake
1шт.
19
514920
HOSE CLAMP,20.6mm - 38.1mm, Worm Gear
1шт.
20
87393628
ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB
90 Barb 1 Hose x 1-5/16-12 OR
1шт.
21
87547024
HOSE,25.4mm ID x 1553mm L, SAE 100R4
1553 mm (61 in); Charge Pump Supply
1шт.
22
87547032
HOSE,9.65 mm ID x 3050.00 mm
467 mm (18.4 in); Charge Pressure
1шт.
