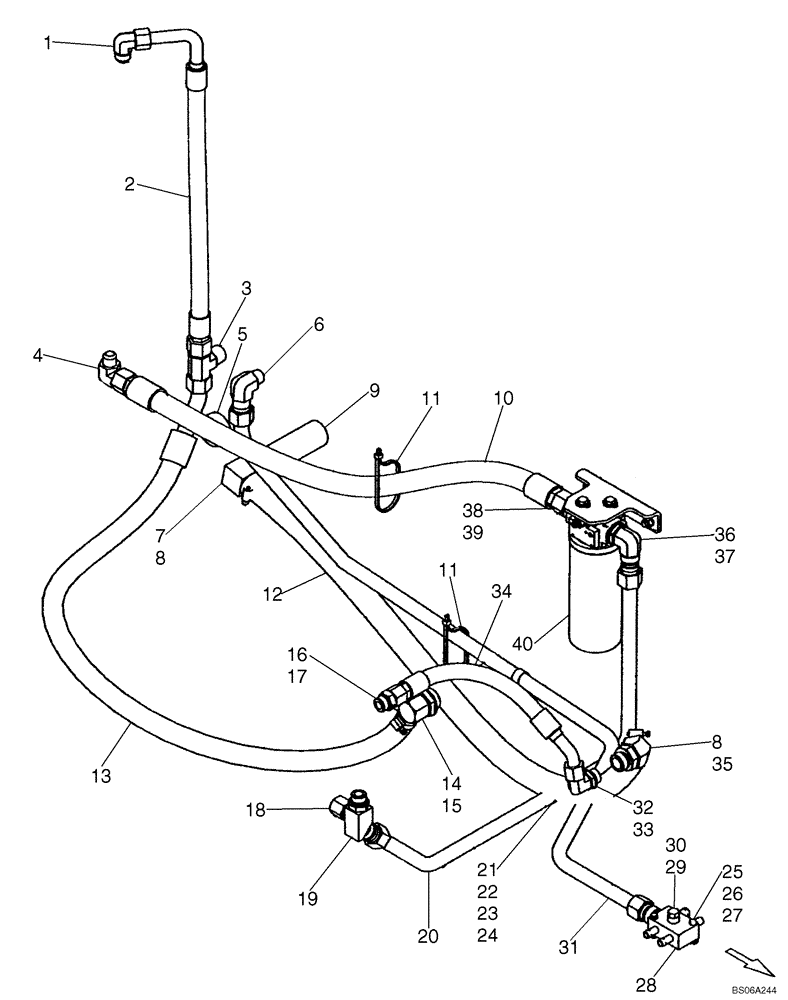

Запчасти Case 450 (06-06) - HYDROSTATICS - PUMP, SUPPLY AND RETURN (450 WITH IN-LINE PUMP CONFIGURATION) (06) - POWER TRAIN

REF

INSTRUCTION

450 WITH IN-LINE PUMP CONFIGURATION

1шт.

87638777

SERVICE KIT

Conversion Kit, Split Pump To In-Line Pump; Incl Ref 12, 13-15, 34, Fig 06-06A Ref 1, 3, 7, 9-11, Fig 06-08 Ref 19-24, Fig 06-07A Ref 5, 6, 9-14, 17-19, 21, 22

1шт.

1

144120

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

2

87448981

HOSE ASSY.

Oil Cooler Outlet

1шт.

3

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

4

87038696

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

5

87035993

PLUG,Sq Soc, 2"-11 1/2 NPTF

1шт.

6

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

1шт.

7

87029969

HYD CONNECTOR

Elbow, 90 deg Stem, 1-1/4 Stem x 1-1/4 NPTF; Replaces 217-137 Fitting

1шт.

8

87039085

HOSE CLAMP,32mm - 54mm

2шт.

9

189310A1

STRAINER ASSY.

Filter, Suction Line

1шт.

10

87459828

HOSE ASSY.,25.4mm ID x 1145mm L

Oil Cooler In

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

12

87348364

HOSE ASSY.

Gear Pump Suction

1шт.

13

87348343

HOSE ASSY.

1670 mm (65.75 in); Charge Pump Suction; If Used

1шт.

13

87361407

HOSE ASSY.

1310 mm (51.57 in); Charge Pump Suction; If Used; Not Illustrated

1шт.

14

87418259

FITTING

1шт.

15

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

16

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 17

3шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

219606

CAP,1-1/16" - 12 JIC

1шт.

19

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45, With Side Outlet

1шт.

20

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

22

122158A1

NUT,M8, U

2шт.

23

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

26

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

27

87404992

SQUARE NUT,M6 x 1.0, Cl 8

Square, M6-1.0 Class 8

2шт.

28

87437351

MANIFOLD

Return, Oil

1шт.

29

76349

PLUG,9/16" - 18 ORB

Incl. 30

1шт.

30

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

87440223

HYD TUBE,25.4 mm OD x 1403, 391.6 mm L

Case Drain

1шт.

32

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 33

3шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

87348363

HOSE ASSY.

Loader Valve Supply

1шт.

35

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

36

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl. 37

1шт.

37

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

38

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl. 39

1шт.

39

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

40

87430661

FILTER

Hydrostatic Filter; For Mounting, See Figure 06-18

1шт.
