REF
INSTRUCTION

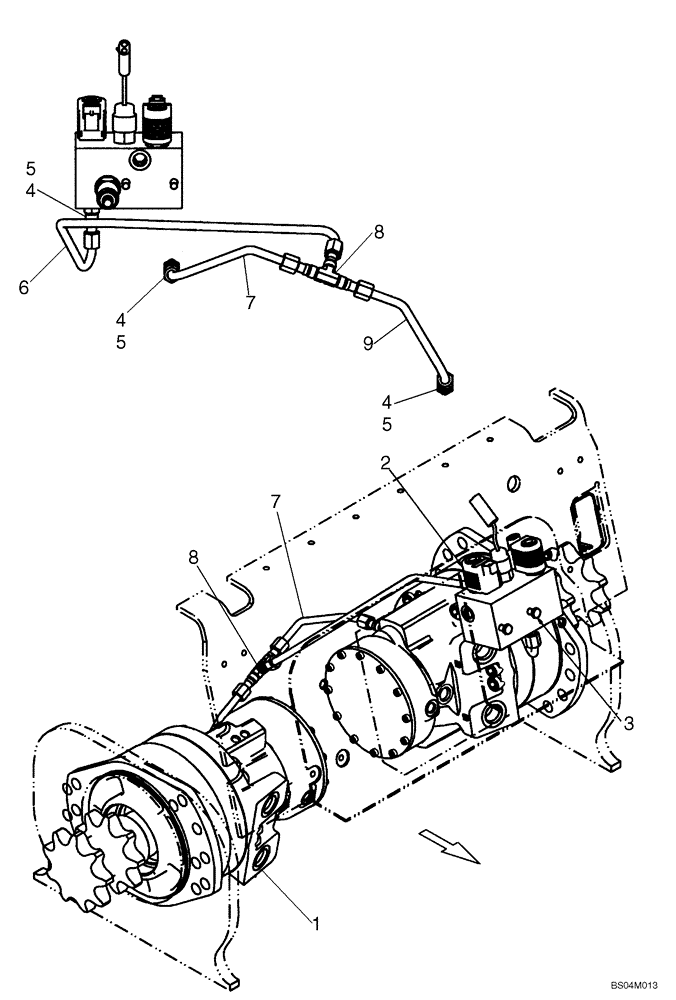

MODELS WITH SPLIT PUMP CONFIGURATION
1шт.
87638777
SERVICE KIT
Conversion Kit, Split Pump to In-Line Pump, See Fig 06-07B Ref 8
1шт.
1
87035344
HYDRAULIC MOTOR
Two Speed; See Figure 06-39 - 06-41
2шт.
1
87035344R
REMAN-HYD MOTOR
Remanufactured Hydraulic Motor
2шт.
1
87035344C
CORE-MOTOR HYDRAULIC
Return Number
2шт.
2
87459037
HYDRAULIC VALVE
Two Speed; See Figure 06-07; If Used
1шт.
2
87756432
BRAKE VALVE
Two Speed; See Figure 06-07
1шт.
3
412215
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8
2шт.
4
76350
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
Incl 5
3шт.
5
9617873
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
6
87458946
HYD TUBE,9.53 mm OD
Speed Valve To Tee
1шт.
7
87458948
HYD TUBE,9.53 mm OD
Tee To Left Hand Motor
1шт.
8
76355
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
1шт.
9
87458947
HYD TUBE,9.53 mm OD
Tee To Right Hand Motor
1шт.
