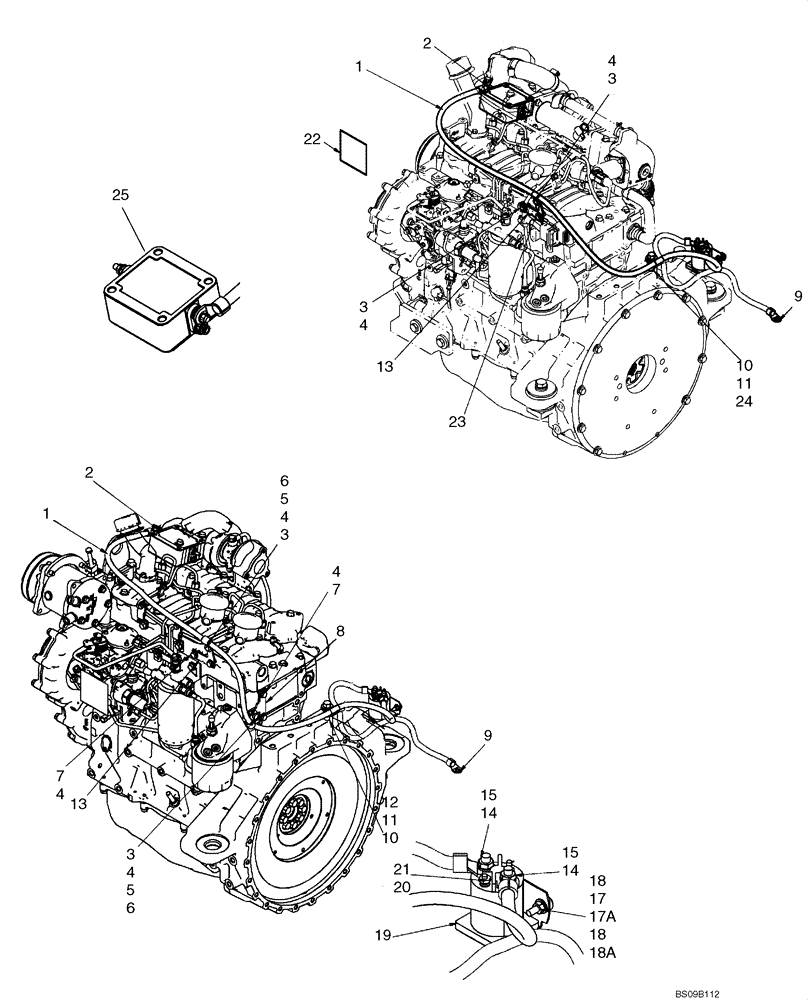

Запчасти Case 445 (04-05A) - ELECTRICAL - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

87709058

CABLE

Grid Heater, 1528mm (60 5/32 in.)

1шт.

2

86511444

FLANGE NUT,Hex, M6 x 1

If Used

1шт.

3

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2-3шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3-6шт.

5

9706690

NUT,M8 x 1.25, Cl 8

1-2шт.

6

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1-2шт.

7

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

If Used

4шт.

8

87591548

BRACKET

If Used

1шт.

9

87047862

CABLE,595mm L

Grid Heater, 595mm (23 7/16 in.)

1шт.

10

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

1шт.

11

87305403

SPACER,13.51mm ID x 19.05mm OD x 17.5mm Thk

1шт.

12

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

If Used

1шт.

13

87591549

BRACKET

1шт.

14

9626568

JAM NUT,Jam, 5/16"-18, G2

2шт.

15

80681

LOCK WASHER,5/16"

2шт.

16

9706755

NUT,M6, Cl 8

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

17a

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

If Used

2шт.

18

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

2шт.

18

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

18a

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

If Used

2шт.

19

87406968

SOLENOID SWITCH

1шт.

20

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

21

87825

NUT,#10-32

1шт.

22

629086

DANGER DECAL

Danger

1шт.

23

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

Insul 11.1mm x 3/8in Bolt

1шт.

24

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Insul 11.1mm x M12 Bolt

1шт.

25

87493115

BAR

Terminal Jumper Bar

1шт.
