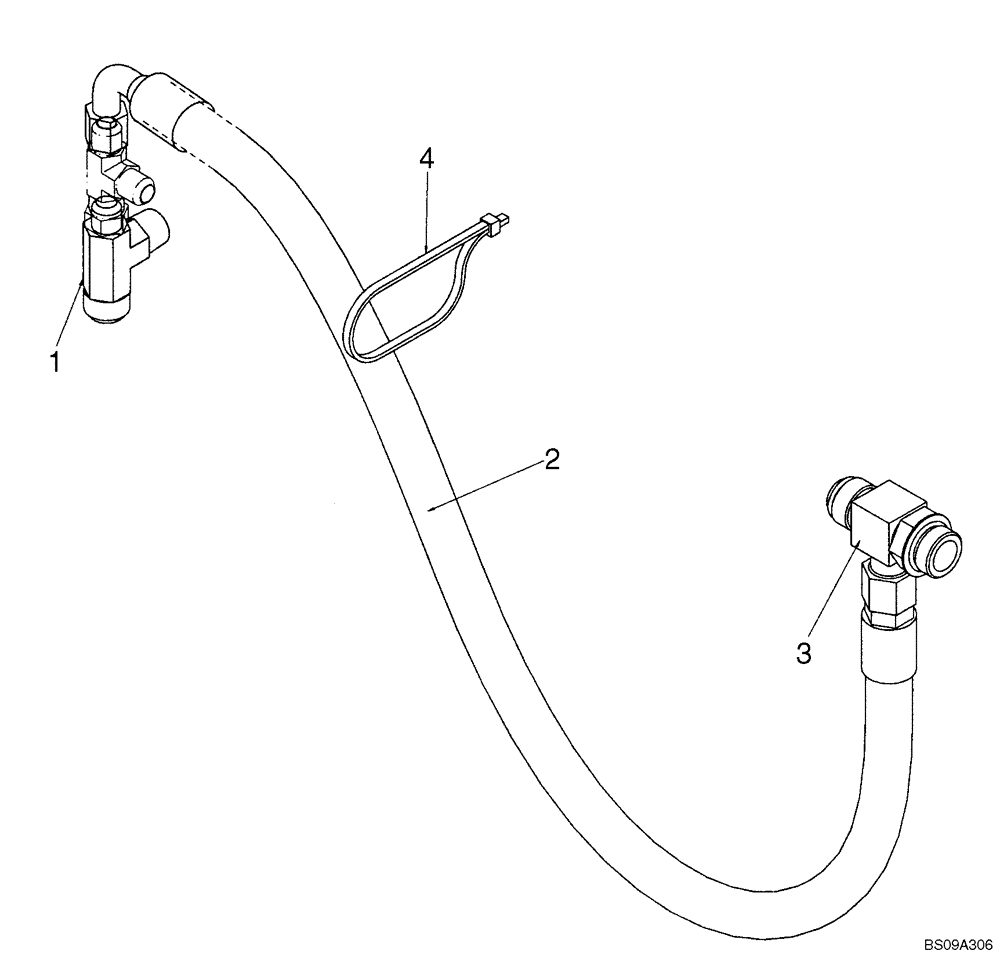

Запчасти Case 445 (02-41) - OIL COOLER BYPASS (02) - ENGINE

REF

INSTRUCTION

If Used, For Non-Bypass Option See Fig 06-12

1шт.

1

87039438

TEE,1 5/16"-12, 37 Degree x 7/8"-14, 37 Degree x 3/4"-14, NPTF Br

1шт.

2

87746699

HOSE

Oil Cooler Bypass

1шт.

3

254524A1

TEE

Hydraulic - Special

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
