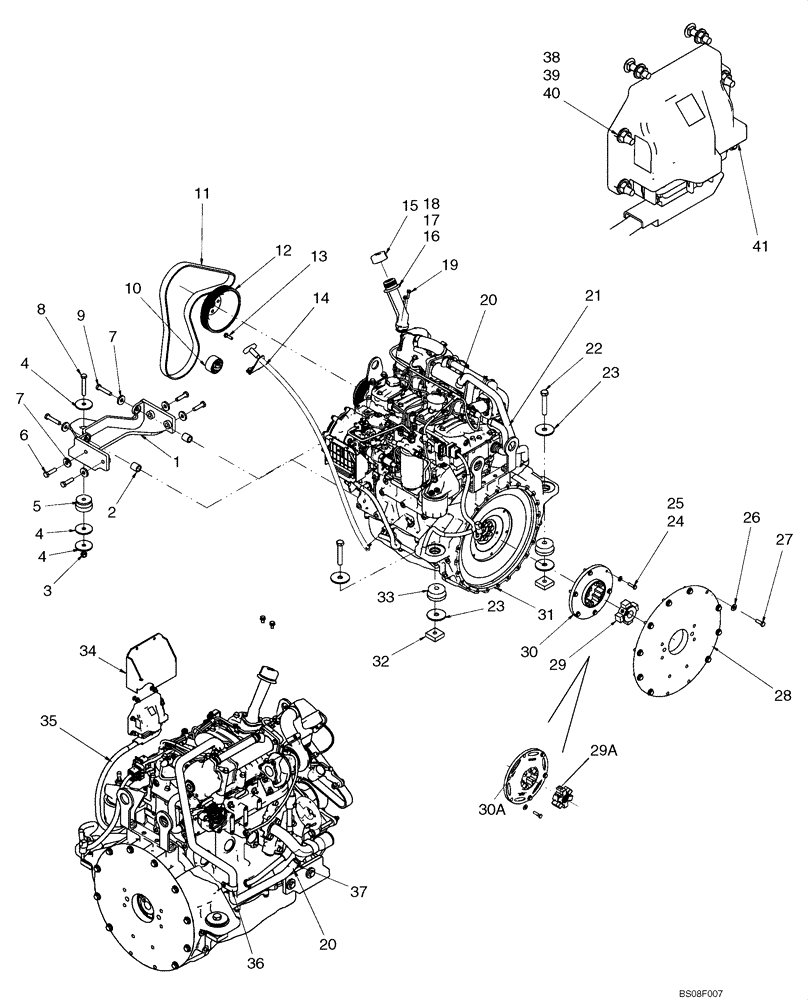

Запчасти Case 445 (02-06A) - ENGINE - MOUNTING (EUROPE) (02) - ENGINE

REF

INSTRUCTION

Throttle Control; See Fig 03-02

1шт.

1

87687525

BRACKET

1шт.

2

87578141

SPACER

2шт.

3

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

4

87639792

WASHER,0.53" ID x 2.5" OD x 0.19" Thk

3шт.

5

86541277

INSULATOR

1шт.

6

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

7

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

8

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

9

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

10

87698715

PULLEY,60mm OD

Idler Pulley

1шт.

11

87697425

V-BELT,28.48 mm W x 1540.00 mm L, 8 Ribs

(Europe)

1шт.

12

87693079

PULLEY,180mm OD x 64mm W

Fan Pulley

1шт.

13

87717911

BOLT,Hex, M8 x 20mm, Cl 10.9, Full Thd

1шт.

14

REF

INSTRUCTION

Remote Dipstick; See Fig 02-08

1шт.

15

87674802

CAP,7mm ID x 9mm OD x 12mm L

Oil Fill Cap

1шт.

16

87689627

SPACER

Spacer

2шт.

17

87674803

NECK FILLER

If Used

1шт.

17

87680042

NECK FILLER

Incl 16 And 18

1шт.

18

86625096

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

1шт.

19

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

20

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

If Used

2шт.

20

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

21

87655496

HEATER HOSE,16.00 mm ID, 19.00 mm OD, 510.30 mm, SAE 30R2

1шт.

22

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

2шт.

23

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

24

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

26

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

27

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

28

87547003

PLATE

Pump Mounting Plate

1шт.

29

87024588

HUB

Pump Drive Star, 4 Point Drive

1шт.

29a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Star, 6 Point Drive; Replaces 87024588

1шт.

30

87024539

ELEMENT

Pump Drive Element, 4 Point Drive

1шт.

30a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive Element, 6 Point Drive; Replaces 87024539

1шт.

31

87380450

ENGINE

Engine, F5C

1шт.

31

87380450ER

REMAN-REPLACEMENT EN

445 Tier 3 ,ASN N7M454787, 445CT Tier 3 , ASN N8M458846, F5C, 4 Cyl, 2v TC, New Replacement Eng.,

1шт.

87380450EPAC

CORE-EPA ENGINE

Return Number

1шт.

31

87380450R

REMAN-REPLACEMENT EN

ENGINE (EXCHANGE) F5C Replacement Engine

1шт.

87380450C

CORE-ENGINE

Return Number

1шт.

47456817R

REMAN-BASIC ENGINE

445 ASN N7M454787, 445CT ASN N8M458846, BOTH TIER 3 (1/08-3/11), Reman For New P/N 87380450

1шт.

47456817C

CORE-BASIC ENGINE

Return Number

1шт.

31

8099018R

REMAN-SHORT ENGINE

1шт.

8099018C

CORE-SHORT ENGINE

Return Number

1шт.

32

87535743

NUT

2шт.

33

86550698

INSULATOR

2шт.

34

87714642

COVER

If Used

1шт.

35

87668734

HARNESS

EGR ECU

1шт.

36

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

36

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

37

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

38

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3-5шт.

39

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

If Used

5шт.

39

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

5шт.

40

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3-5шт.

41

87685982

ECU

Controller, F5C EGR; If Used

1шт.

41

87477368

ECU

Controller, F5C EGR: If Used

1шт.
