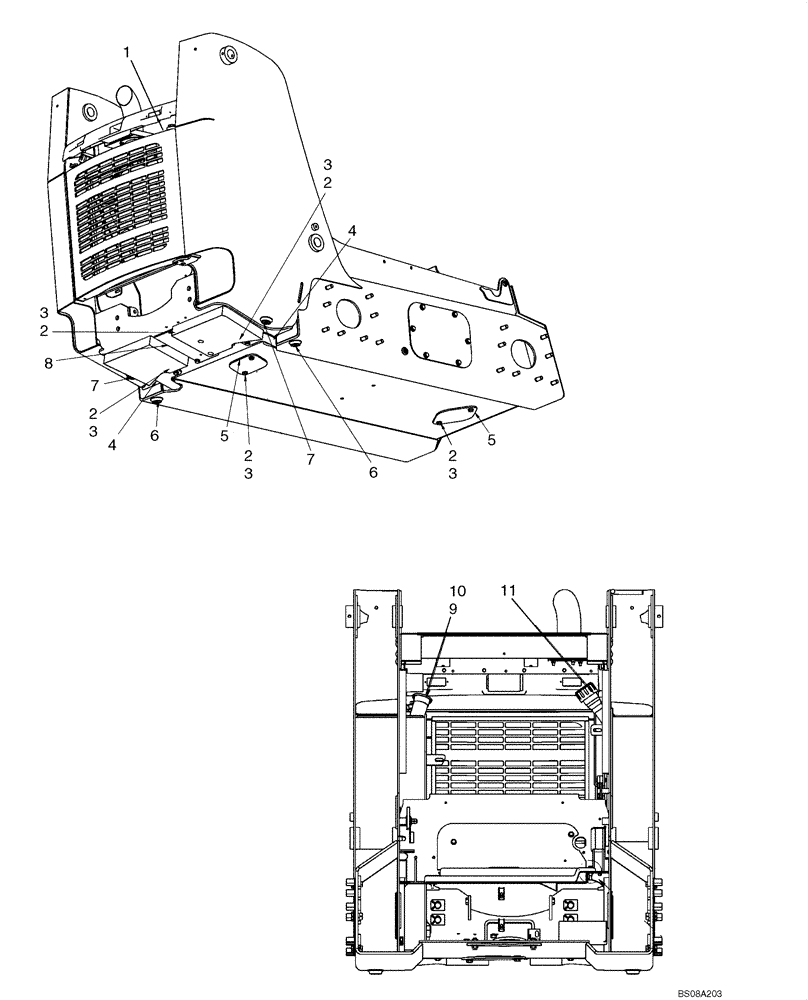

Запчасти Case 445 (09-10) - CHASSIS (445) (09) - CHASSIS

1

REF

INSTRUCTION

Rear Door, Standard; See Fig 09-56

1шт.

1

REF

INSTRUCTION

Rear Door, Louvered (Europe); See Fig 09-57

1шт.

2

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

17шт.

4

189422A1

COVER

Rear Chain Tank Cover

2шт.

5

247609A1

COVER

2шт.

6

86625135

PLUG,1" - 11-1/2 NPT

2шт.

7

87432221

PLUG

Magnetic Plug

2шт.

8

87666086

PLATE

Cover

1шт.

9

H436887

CAP

Fuel Cap, Non Locking

1шт.

10

108925A1

FILLER CAP

Fuel Cap, Locking; Incl 2 Keys

1шт.

11

257448A1

CAP

Hydraulic Fill Cap

1шт.
