Запчасти Case 445 (07-03) - HYDROSTATICS - MULTI VALVE ASSEMBLY; PILOT CONTROL (06) - POWER TRAIN

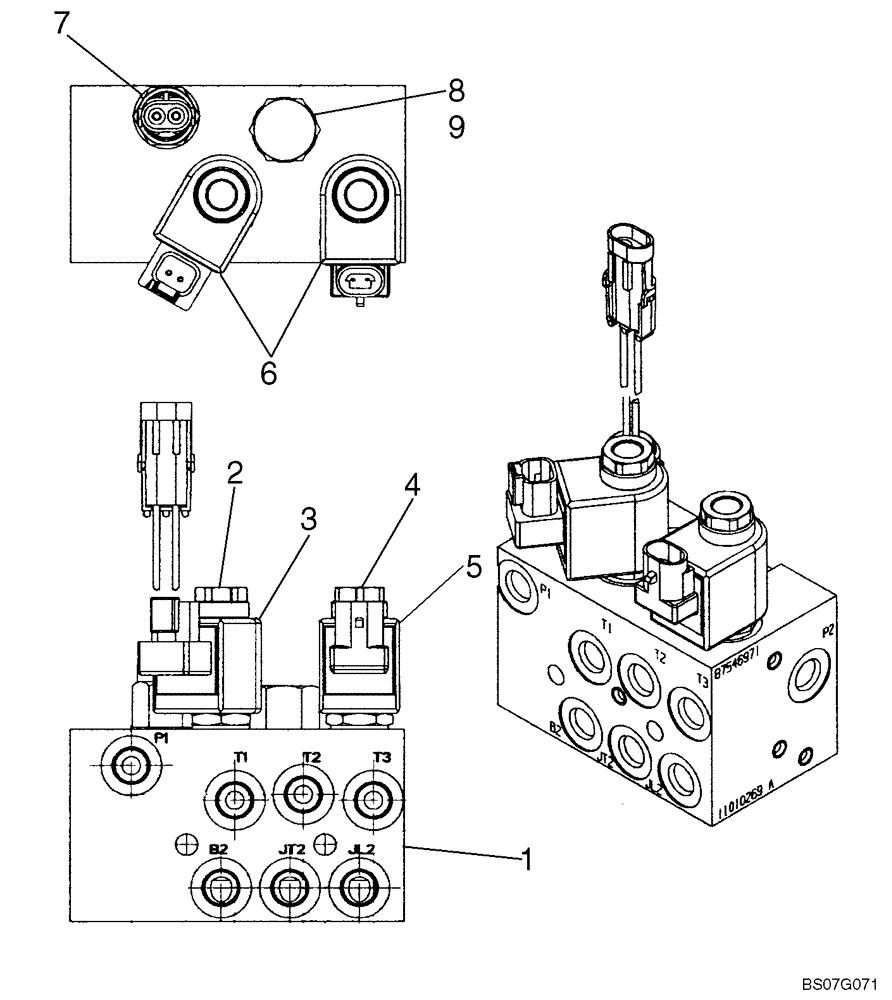

Схема запчастей Case 445 - (07-03) - HYDROSTATICS - MULTI VALVE ASSEMBLY; PILOT CONTROL (06) - POWER TRAIN
3
7
2
6
8
4
1
9
5

Артикул

Название

Примечание

Количество

1

87756435

HYDRAULIC VALVE

Pilot Control, Brake; Incl. 2 - 9

1шт.

2

87458061

PRESSURE SWITCH

Charge Pressure; Incl. O-Ring Which Is Not Serviced Separately

1шт.

3

87756428

VALVE

Solenoid Valve Brake

1шт.

4

87756425

COIL

Coil

1шт.

5

87756429

VALVE

Solenoid Valve Interlock

1шт.

6

87756426

COIL

Interlock

1шт.

7

87614009

VALVE

Cartridge Valve

1шт.

8

87614015

SEAL KIT

Cartridge Valve

1шт.

9

87484264

SERVICE KIT

Solenoid Valve Seal

1шт.

10

87484265

SERVICE KIT

Coil nut And O-Ring

1шт.

Выбрано товаров: 10
