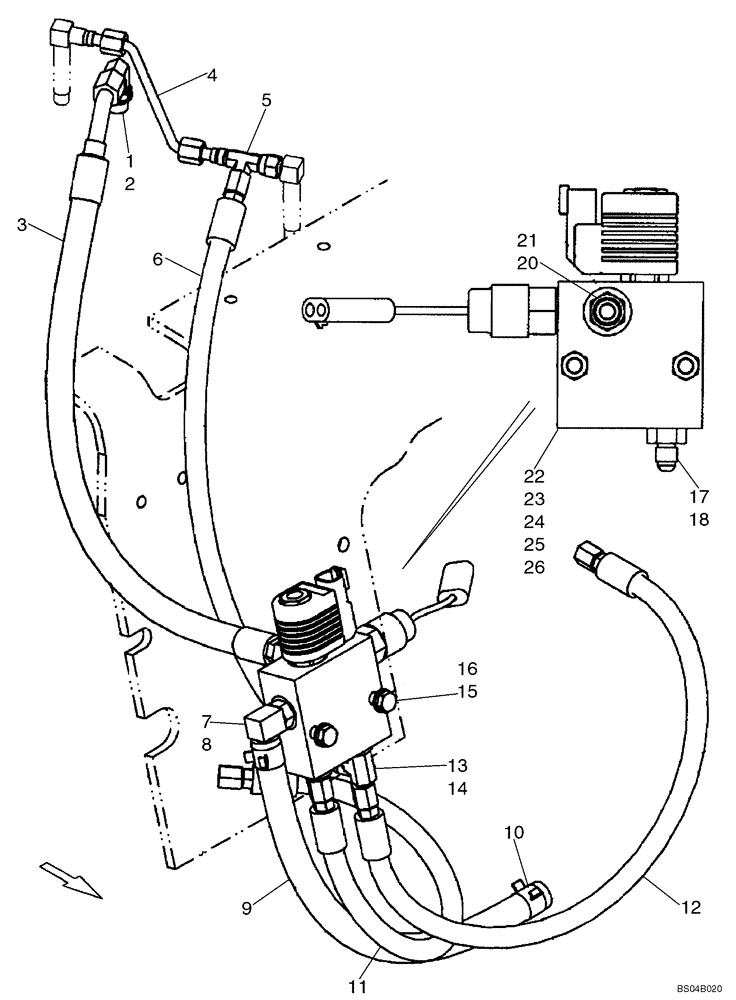

Запчасти Case 445 (07-01) - BRAKE SYSTEM - HYDRAULIC (07) - BRAKES

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 2; To Charge Port on Tandem Pump

1шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

87021890

HOSE

1шт.

4

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

5

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

6

87015466

HOSE

1шт.

7

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 8

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

87015463

HOSE,12.7mm ID x 402mm L

To Drain Manifold

2шт.

10

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

11

87015941

HOSE

To Right Hand Motor Brake Port

1шт.

12

87015942

HOSE

To Left Hand Motor Brake Port

1шт.

13

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

Incl. 16

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

16

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

17

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 23

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

14048221

NUT,M8 x 1.25, Cl 10

2шт.

20

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87021047

BRAKE VALVE

Valve Assy; Incl. 23 - 26; For Two Speed Option, See Figure 06-06, Ref 8

1шт.

23

87424182

BRAKE VALVE

Solenoid Valve

1шт.

24

NSS

NOT SOLD SEPARAT

Body

1шт.

25

87433496

COIL

Coil

1шт.

26

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.
