Запчасти Case 445 (06-26) - WHEELS (06) - POWER TRAIN

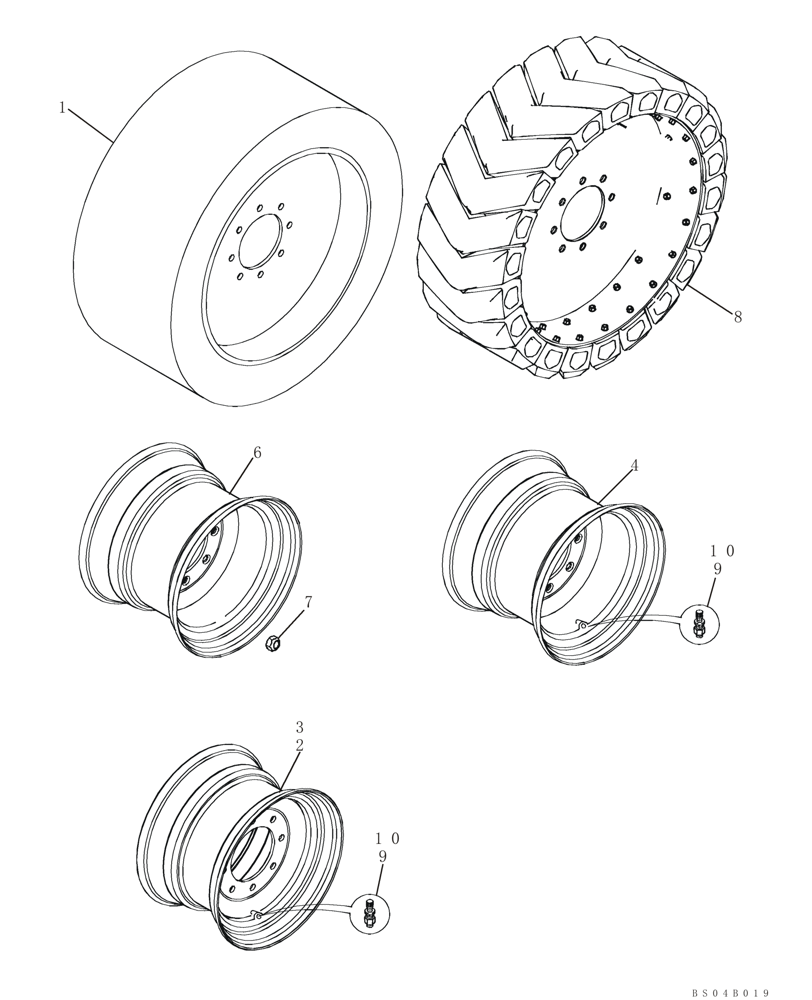

Схема запчастей Case 445 - (06-26) - WHEELS (06) - POWER TRAIN
3
bs04b019
4
9
6
7
2
1
9
10
10
8

Артикул

Название

Примечание

Количество

1

294904A1

RIM

WHEEL 8.25 x 15; Left Hand

2шт.

1

294903A1

RIM

WHEEL 8.25 x 15; Right Hand

2шт.

2

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Inch Tire

4шт.

3

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

4

248048A2

RIM

WHEEL 16,5 x 12; Used With 33/15.50 x 16.5 Inch Tire

4шт.

6

409174A2

RIM

WHEEL 16.5 x 12; Used With 33/15.5 x 16.5 Inch Tire

4шт.

7

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

MX 16 x 2-6G

32шт.

8

346266A1

SEGMENT

Used With 1

1шт.

9

294579A1

VALVE STEM

Use With 2, 4, 6

4шт.

10

372445A1

VALVE STEM

Use With 3, 4

4шт.

86512498

FLANGE NUT,M16 x 2, Cl 10

See Figure 06-24

1шт.

Выбрано товаров: 11
