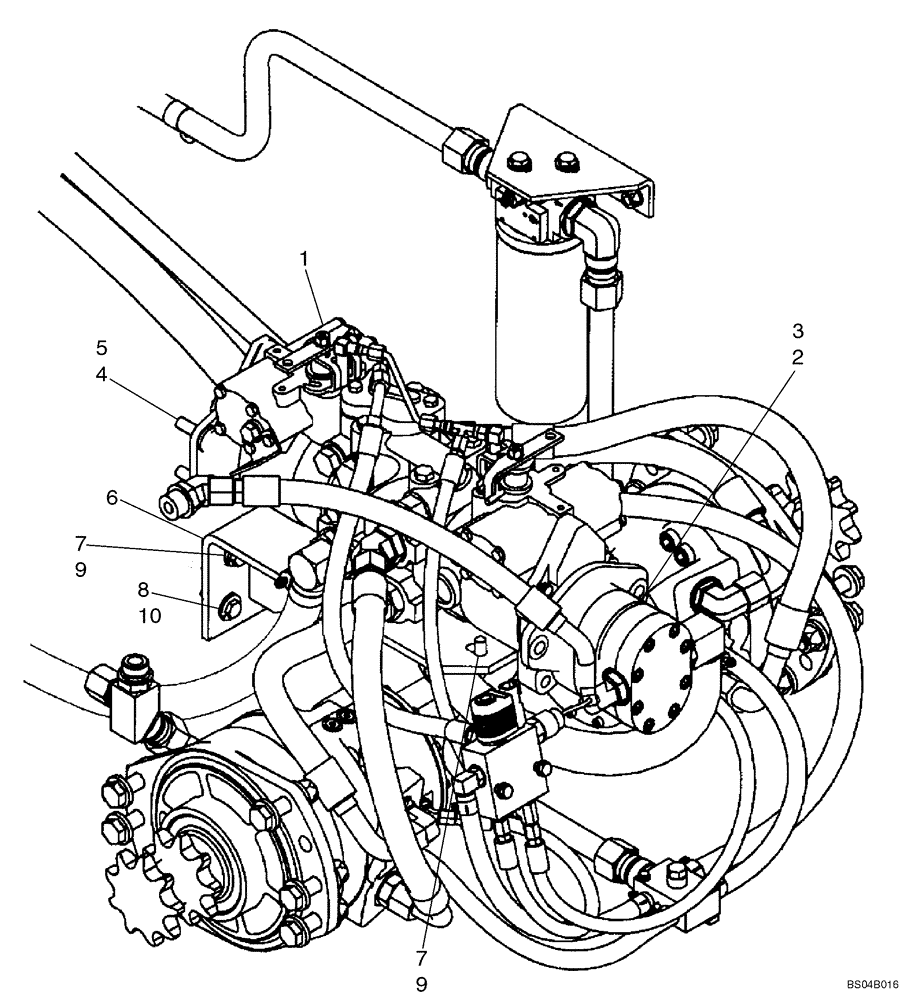

Запчасти Case 445 (06-09) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN

87043501

PUMP

Tandem Pump; Order Components; Incl. 1 - 3

1шт.

1

87043502

PUMP

Tandem Pump; See Figure 06-10 - 06-15

1шт.

1

87043502R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

87043502C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87024695

PUMP,36 CC

Gear Pump; See Figure 06-16

1шт.

87024695R

REMAN-HYD PUMP

445 BSN N7M454787 (3/04-12/07)

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

87013729

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

1шт.

4

86639031

BOLT,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

6

87020365

SUPPORT ASSY.

Pump Support

1шт.

7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

9

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.
