Запчасти Case 440 (02-06) - ENGINE - MOUNTING (02) - ENGINE

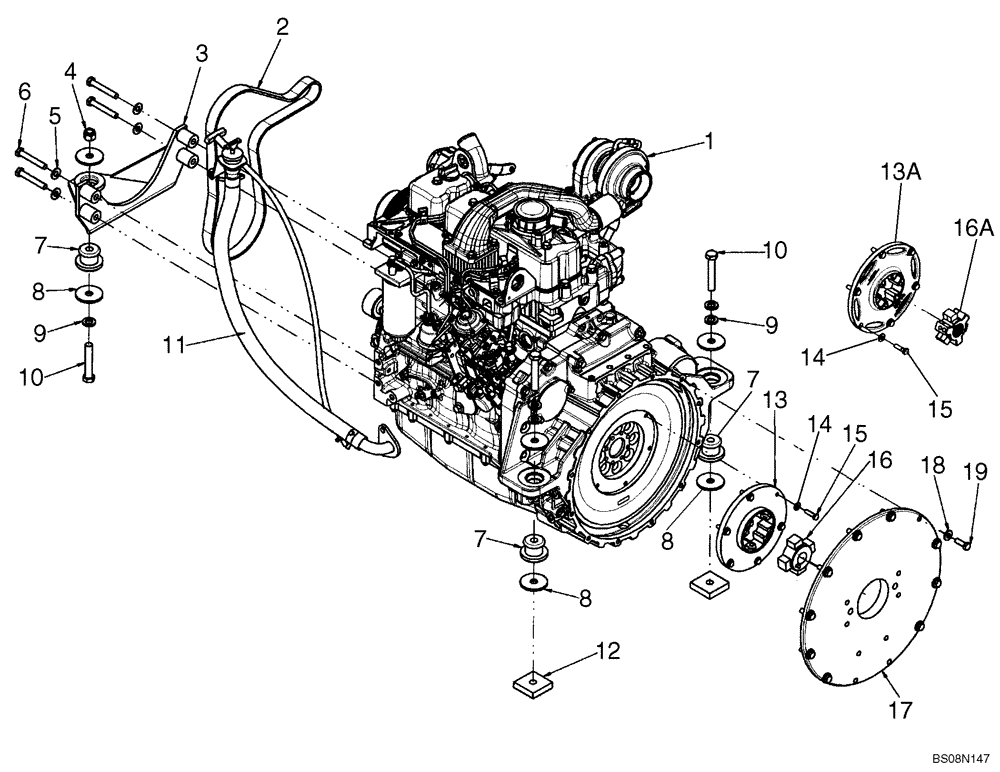

Схема запчастей Case 440 - (02-06) - ENGINE - MOUNTING (02) - ENGINE
7
19
5
10
13a
9
8
18
16a
14
7
8
13
7
1
15
12
14
8
2
17
9
16
4
15
6
11
10
3

Артикул

Название

Примечание

Количество

1

84149899

ENGINE

NEF, 67 KW 296 Fan; Incl Parts on Figures 02-09 - 02-41, 03-03 - 03-10, 04-02; Replaces Engine 87384641. Use Top Gasket kit 87478872 and Lower Gasket kit 87478874

1шт.

84149899R

REMAN-REPLACEMENT EN,67kW, 4.5L, 4 Cylinders, W/ Turbocharger

440 SERIES 3 ASN N8M474469 ENGINE 87384641 (1/08-), 440CT SERIES 3 ASN N7M483467 ENGINE 87384641 (1/08-3/11)

1шт.

84149899C

CORE-ENGINE

Return Number

1шт.

84149899ER

REMAN-REPLACEMENT EN

440, 440CT, Both ASN N8M474469, 4 Cyl., Tier 3

1шт.

84149899EPAC

CORE-EPA ENGINE

Return Number

1шт.

84131042

SHORT ENGINE

Short Block; Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft

1шт.

1

84131042ER

REMAN-SHORT ENGINE

440 ASN N8M474469 (1/08-) & 440CT ASN N7M483467 (1/08 - 3/11) Both Series 3 w/NEF 4 Cyl., 2 Valve, Tier 3 Engine

1шт.

1

84131042EPAC

CORE-EPA ENGINE

Return Number

1шт.

84131042R

REMAN-SHORT ENGINE

440 ASN N8M474469 (1/08-) & 440CT ASN N7M483467 (1/08 - 3/11) Both Series 3 w/NEF 4 Cyl., 2 Valve, Tier 3 Engine

1шт.

84131042C

CORE-ENGINE

Return Number

1шт.

2

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

1шт.

3

87041763

ENGINE MOUNT

Rear

1шт.

4

412066

NUT,M16 x 2.0, Cl 8

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

6

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

7

A140221

MOUNTING PARTS

3шт.

8

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

6шт.

8

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

Washer

6шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

5шт.

10

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

3шт.

11

REF

INSTRUCTION

Dipstick Assy; See Figure 02-22

1шт.

12

390350A1

PLATE

2шт.

13

87024539

ELEMENT

Pump Drive, 6.5 in; Used with 16

1шт.

13a

87692685

FLEXIBLE COUPLING,215.9mm OD

Used With 16A

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

15

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

16

87024588

HUB

Pump Drive Star; Used With 13

1шт.

16a

87711337

COUPLING,19T, 1-1/8" ID

Used With 13A

1шт.

17

87547003

PLATE

Pump Mounting

1шт.

18

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

Выбрано товаров: 31
