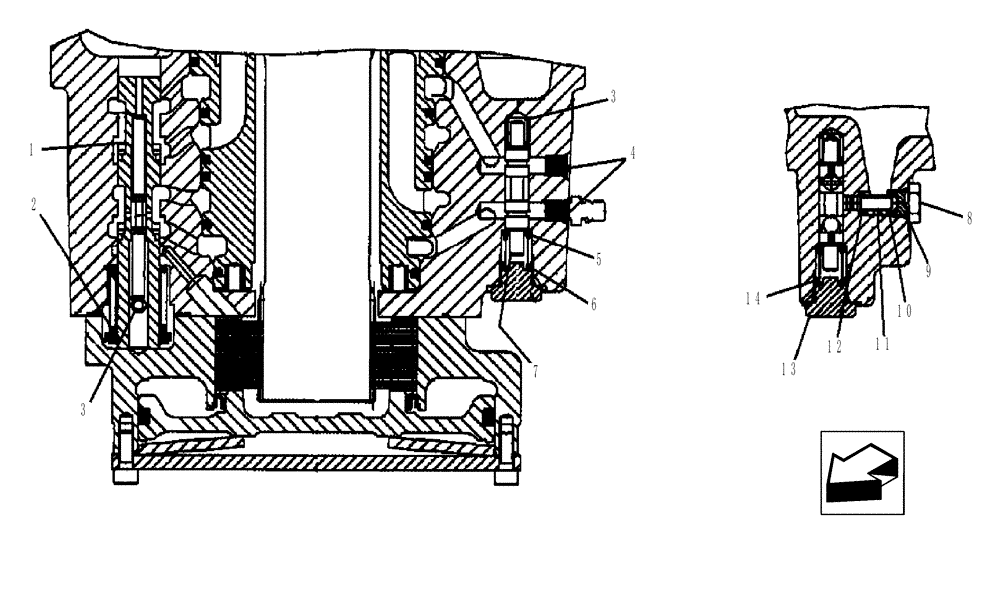

Запчасти Case 440 (06-60) - MOTOR ASSY - TWO SPEED (06) - POWER TRAIN

87035342

HYDRAULIC MOTOR,470CC

Two Speed

2шт.

87035342R

REMAN-HYD MOTOR,470CC

440 SERIES 3, ASN N8M474469, 2 Speed

2шт.

87035342C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1

84281323

SERVICE KIT

Spool

1шт.

2

NSS

NOT SOLD SEPARAT

Washer

1шт.

3

87042934

SPRING

Flushing Side A

1шт.

4

NSS

NOT SOLD SEPARAT

Shear Plug; M8

2шт.

5

87042929

WASHER

1.5 Thick

1шт.

6

87042935

SPRING

Flushing Side B

1шт.

7

87042928

SPOOL

Flushing

1шт.

8

87042933

POPPET,Plug, 7/16" SAE

7/16

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring; 8.92 x 1.83; Included In 87039371, Seal Kit, See Figure 06-61

1шт.

10

87042931

POPPET,RV 1.7 Orifice

1.7 Orifice

1шт.

11

87042932

SPRING

Flushing

1шт.

12

87042930

SHIM

0.6

1шт.

13

214389

PLUG,3/4" - 16 ORB

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.
