Запчасти Case 440 (06-35) - PUMP, TANDEM (440) (06) - POWER TRAIN

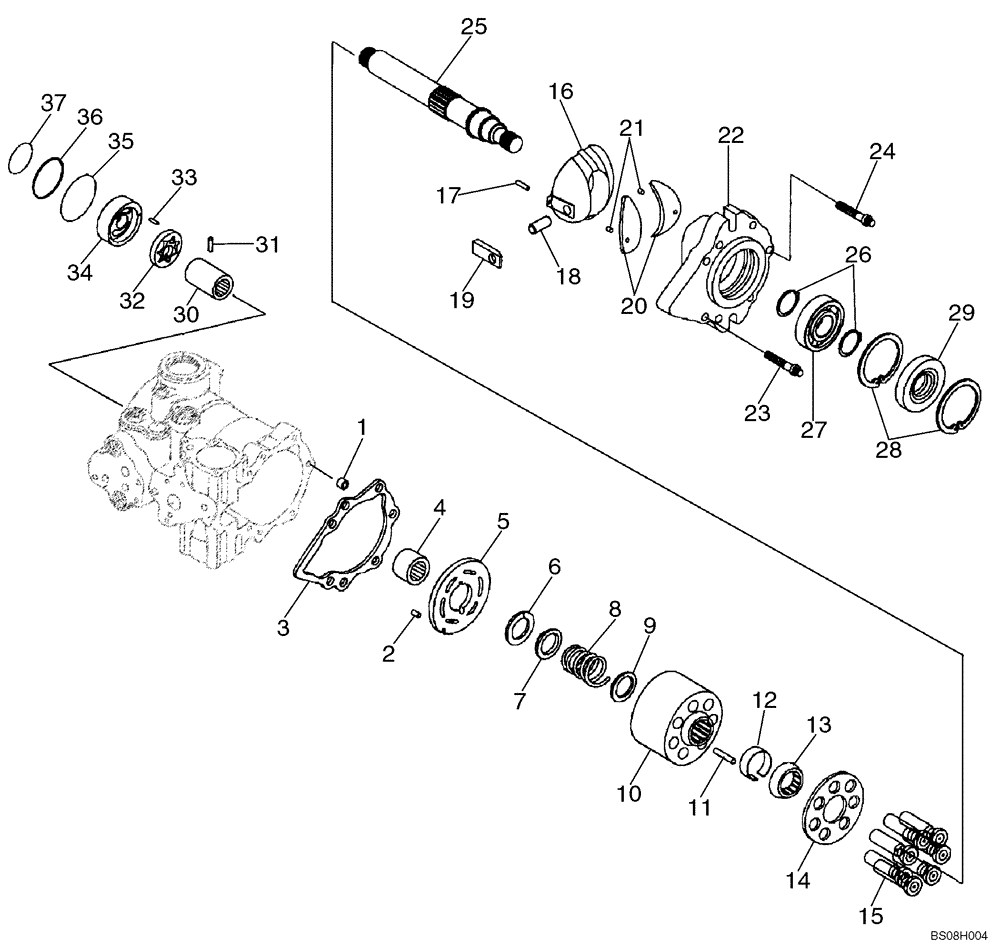

Схема запчастей Case 440 - (06-35) - PUMP, TANDEM (440) (06) - POWER TRAIN
3
25
15
12
23
31
4
9
13
35
17
37
24
36
32
11
20
34
8
5
27
6
1
30
22
7
19
33
26
29
10
21
18
16
28
2
14

Артикул

Название

Примечание

Количество

*

Front Pump

1шт.

87043500

PUMP,46 CC

Incl. 1 - 37

1шт.

87043500R

REMAN-HYD PUMP

REMANUFACTURED HYDRAULIC PUMP

1шт.

87043500C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

1

N13994

SPACER

1шт.

2

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

3

H436704

GASKET,0.79mm Thk

Included in 140008A1 Seal Kit

1шт.

4

1277297C1

NEEDLE BEARING

1шт.

5

128928A1

LARGE PLATE

PLATE, LARGE

1шт.

87039625

KIT

Cylinder Block; Kit Includes Cylinder Block Parts For Rear Pump; Incl. 6 - 15

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

7

115950A1

WASHER

2шт.

8

115948A1

SPRING

2шт.

9

115946A1

WASHER

2шт.

10

NSS

NOT SOLD SEPARAT

Block, Cylinder

2шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

6шт.

12

115943A1

SNAP RING

Ring, Retaining

2шт.

13

115942A1

GUIDE

2шт.

14

NSS

NOT SOLD SEPARAT

Retainer

2шт.

15

NSS

NOT SOLD SEPARAT

Piston

14шт.

16

87050523

PLATE ASSY.

Variable Swash Plate

1шт.

17

324610A1

PIN

1шт.

18

N13254

PIN

1шт.

19

N13224

SLEEVE

1шт.

87050525

COVER ASSY

Incl. 20 - 22

1шт.

20

87050524

JOURNAL

2шт.

21

193494A1

PIN, ROLL

2шт.

22

NSS

NOT SOLD SEPARAT

1шт.

23

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

24

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

25

N13244

SHAFT

1шт.

26

100-11137

SNAP RING,#137, Ext

2шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

2шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

29

N14103

SEAL

Lip; Included in 140008A1 Seal Kit

1шт.

30

N13234

COUPLING, BREAK AWAY

1шт.

31

N13262

PIN

2шт.

32

N13247

GEAR-SET

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

1шт.

35

H437190

O-RING

Included in 140008A1 Seal Kit

1шт.

36

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

Included in 140008A1 Seal Kit

1шт.

37

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

Included in 140008A1 Seal Kit

1шт.

Выбрано товаров: 43
