Запчасти Case 440 (06-23) - HYDROSTATICS - TWO SPEED, DRIVE MOTORS (MECHANICAL CONTROL) (06) - POWER TRAIN

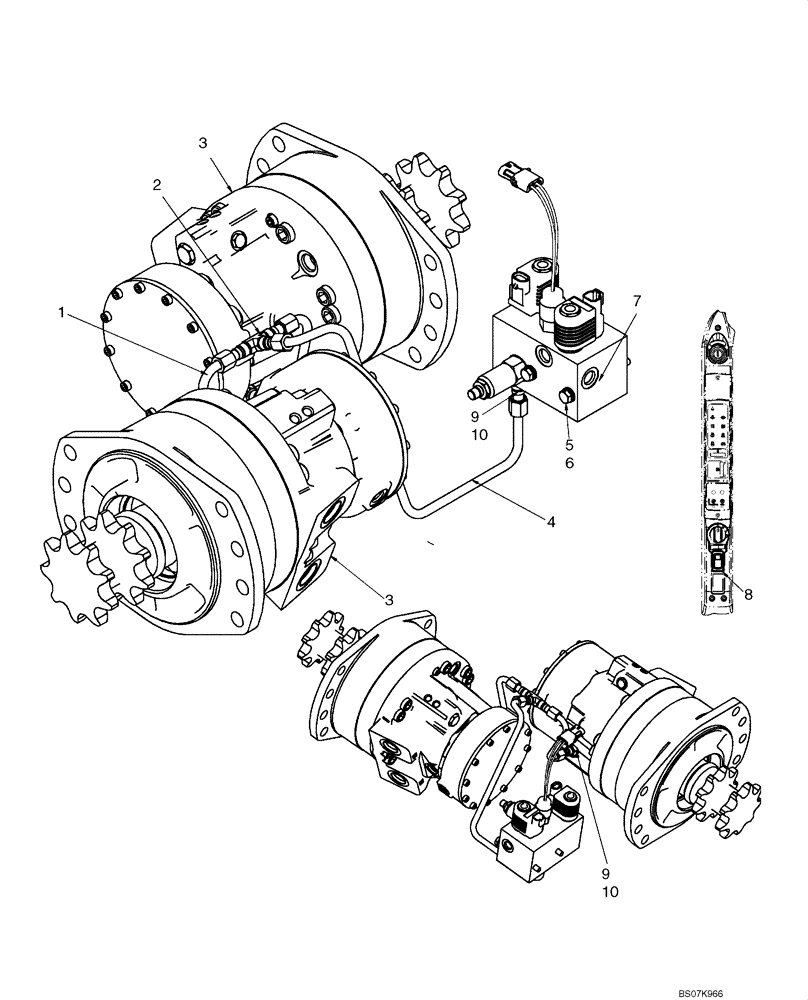

Схема запчастей Case 440 - (06-23) - HYDROSTATICS - TWO SPEED, DRIVE MOTORS (MECHANICAL CONTROL) (06) - POWER TRAIN
7
10
6
3
5
2
9
9
3
4
8
10
1

Артикул

Название

Примечание

Количество

1

87430855

HYD TUBE,9.52 mm OD x 95.7, 33.2 mm L

2шт.

2

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

3

87035342

HYDRAULIC MOTOR,470CC

See Fig 06-59 - 06-61

2шт.

3

87035342R

REMAN-HYD MOTOR,470CC

440 SERIES 3,ASN N8M474469, 2 Speed

2шт.

3

87035342C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

4

87455412

HYD TUBE,9.53 mm OD x 205, 90 mm L

1шт.

5

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

6

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

7

87429625

HYDRAULIC VALVE

See Fig 06-26; If Used

1шт.

7

87756431

BRAKE VALVE

See Fig 06-26A

1шт.

8

87634136

SWITCH

Indicator, High Speed

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 10

3шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

Выбрано товаров: 13
