Запчасти Case 440 (06-18) - HYDROSTATICS - MANIFOLD/CONTROL VALVE (440 WITH PILOT CONTROL) (06) - POWER TRAIN

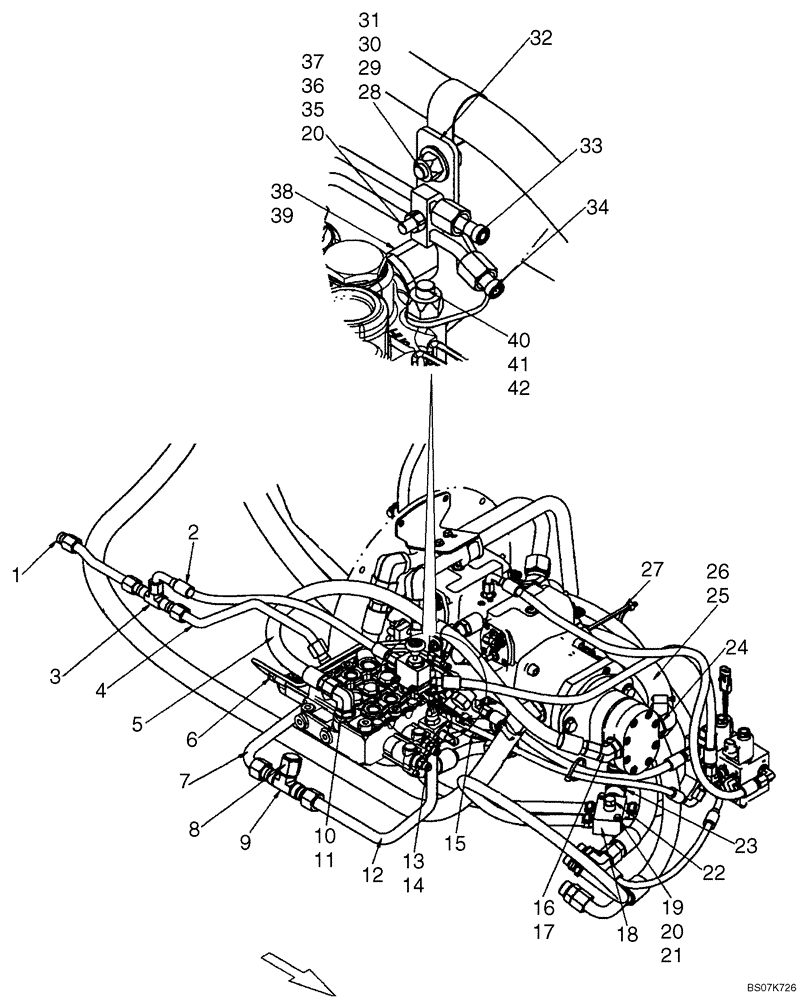

Схема запчастей Case 440 - (06-18) - HYDROSTATICS - MANIFOLD/CONTROL VALVE (440 WITH PILOT CONTROL) (06) - POWER TRAIN
37
21
38
28
35
7
6
13
29
12
15
19
34
25
32
10
23
2
24
8
20
27
3
36
14
17
16
26
40
42
5
31
41
18
11
30
22
20
4
33
39
9
1

Артикул

Название

Примечание

Количество

1

87564000

HYD TUBE,15.875 mm OD x 219.7 mm L

Dump Valve Drain; If Used

1шт.

2

87625890

HOSE

559 mm (22.00 in) Dump Valve Supply; If Used

1шт.

2

87707136

HOSE,9.53mm ID x 1220mm L

1220mm (48.03in) Dump Valve Supply

1шт.

3

87644290

HYD CONNECTOR

If Used

1шт.

4

87563998

HYD TUBE,15.875 mm OD

Dump Valve DrainIf Used

1шт.

5

87547070

HOSE,15.88mm ID x 1000mm L

1000 mm (39.37 in) Valve Supply

1шт.

6

87575684

HYD CONNECTOR

Connector, Flareless

2шт.

7

87445138

HYD TUBE,19.05 mm OD

Valve Out To Filter

1шт.

8

219606

CAP,1-1/16" - 12 JIC

1шт.

9

15694

TEE,1 1/16"-12 37 Degree

1шт.

10

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 11

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

87445137

HYD TUBE,19.05 mm OD x 306.7, 187.6 mm L

Valve To Filter

1шт.

13

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 14

2шт.

14

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

87563975

HOSE,6.35mm ID x 800mm L

Hose, 800 mm (31.49 in) LH Brake

1шт.

16

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 17

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

87437351

MANIFOLD

1шт.

19

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

21

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

22

76349

PLUG,9/16" - 18 ORB

Incl. 19

1шт.

23

86050288

ELBOW,90 Degree, 1-5/16" - 12 JIC x 1-5/16" - 12, 37 Degrees Fem Sw

1шт.

24

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 21

1шт.

25

87563972

HOSE,31.75 mm ID x 420.00 mm, SAE 100R13

Loader Pump Supply

1шт.

26

87039085

HOSE CLAMP,32mm - 54mm

2шт.

27

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

29

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

30

9628098

NUT,M8 x 1.25, Cl 10

1шт.

31

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

87678506

BRACKET

Bracket, Hose Support

1шт.

33

87563969

HYD TUBE,6.35 mm OD

1шт.

34

87563968

HYD TUBE,6.35 mm OD

1шт.

35

80120101

BOLT

1шт.

36

87030561

NUT,M6 x 1, Cl 8

1шт.

37

608089

CLAMP

1шт.

38

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 39

1шт.

39

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

40

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

41

86512554

NUT,M10 x 1.5, Cl 10

1шт.

42

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

Выбрано товаров: 43
