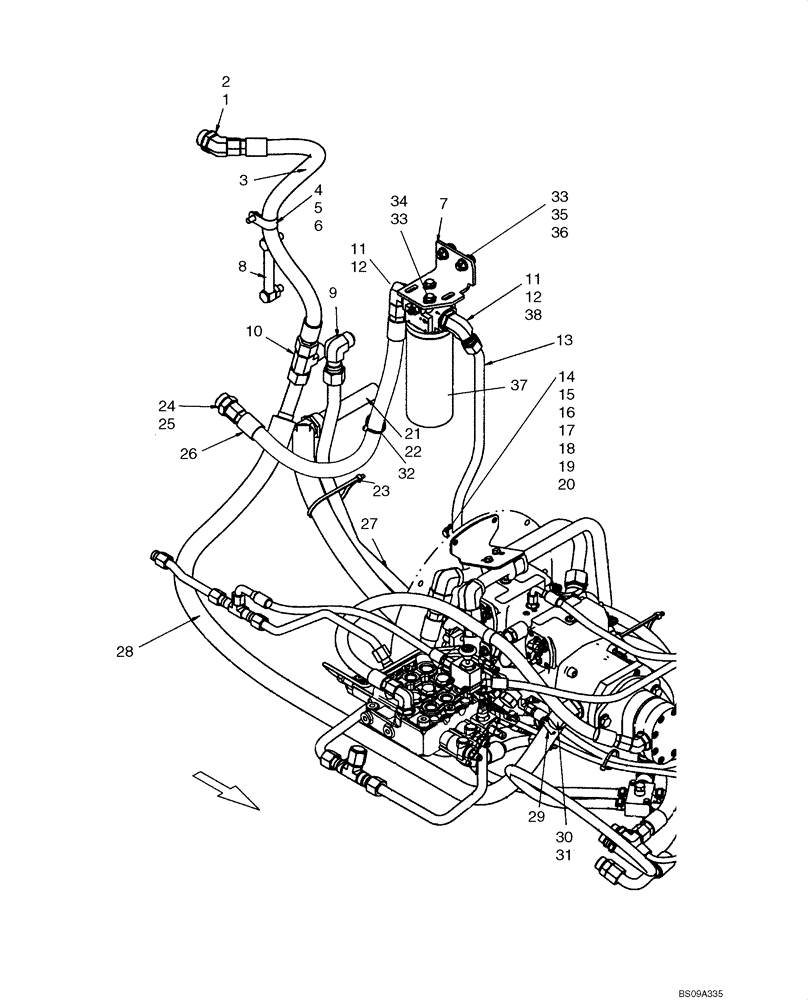

Запчасти Case 440 (06-17) - HYDROSTATICS - PUMP TO COOLER (440 WITH PILOT CONTROL) (06) - POWER TRAIN

1

87657980

ELBOW

Elbow, 37FL 45 ADJ 3/4 x 1.0 Tube; To Oil Cooler; Incl 2

2шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87653980

HOSE,19.05mm ID x 810mm L, SAE 100R4

810 mm (31.88 in) To Upper Oil Cooler

1шт.

4

86639001

CLAMP,30.2mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

7

REF

INSTRUCTION

For Filter Assy And Mounting See Fig 06-32

1шт.

7

87020901

BRACKET, SUPPORTING

Filter Mounting - Tan

1шт.

8

87374752

GAUGE

Liquid Level

1шт.

9

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

10

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

11

87021824

90 ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Incl 12

1-2шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

87660856

HYD TUBE,19.05 mm OD x 422.6, 172.8 mm L

Tube, Valve To Filter (LH Wall); If Used

1шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

87042897

SPACER

1шт.

17

87301359

CLAMP,28.6mm, 10.3mm Bolt Hole, P Type

1шт.

18

87445136

HYD TUBE,18.9 mm ID x 29 mm OD x 21, 2 mm L

1шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

20

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

21

H151399

FILTER STRAINER

1шт.

22

87033823

FITTING,1/4" Hose x 1/8" NPTF, Fem, Barbed

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

233705

HYD CONNECTOR,1-5/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87720240

HOSE,19.05mm ID x 760mm L

Hose, Lower Cooler, 760mm (29 15/16 in.)

1шт.

27

87584058

HYD TUBE,22.92 mm ID x 25.4 mm OD x 1116.1, 307.7 mm L

Case Drain

1шт.

28

87563971

HOSE

1859 mm (73.19 in) Charge Pump Suppply

1шт.

29

86536660

HOSE CLAMP,25mm - 44mm

1шт.

30

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

Incl 31

1шт.

31

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

33

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

34

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

35

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

36

86512554

NUT,M10 x 1.5, Cl 10

2шт.

37

87430661

FILTER

Long Hyd Filter

1шт.

38

87659248

Oil Cooler Bypass; See Fig 06-31A

1шт.
