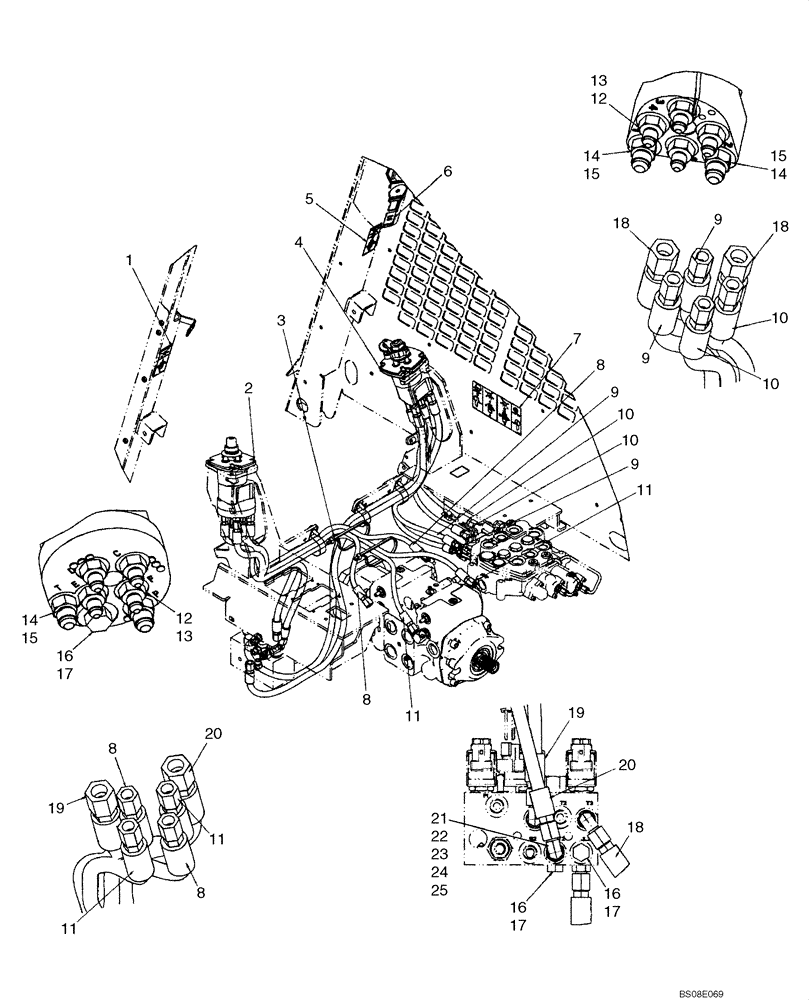

Запчасти Case 440 (06-02) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (440) (06) - POWER TRAIN

87703830

SERVICE KIT

ISO Pattern Controls; Incl 1 - 25

1шт.

1

87715691

DECAL

Decal, ISO Pattern - LH

1шт.

2

87600622

CONTROL BLOCK

Joystick Control Valve, ISO Pattern - LH; See Fig 06-08

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

4

87600623

VALVE

Joystick Control Valve, ISO Pattern - RH; See Fig 06-07

1шт.

5

87715692

DECAL

Decal, ISO Pattern - RH

1шт.

6

87746891

DECAL

Decal, ISO Pattern

1шт.

7

87715688

DECAL

Decal, Control Identification, ISO Pattern

1шт.

8

87604072

HOSE

Hose, Pilot Control, 800mm (31 1/2 in.) Length

2шт.

9

87604062

HOSE,6.35mm ID x 590mm L

Hose, Pilot Control, 590mm (23 1/4 in.) Length

2шт.

10

87604069

HOSE,6.35mm ID x 490mm L

Hose, Pilot Control, 490mm (19 9/32 in.) Length

2шт.

11

87604070

HOSE

Hose, Pilot Control, 920mm (36 7/32 in.) Length

2шт.

12

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 13

8шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

8шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 15

4шт.

15

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

16

76349

PLUG,9/16" - 18 ORB

Incl. 17

3шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

18

87684218

HOSE,9.53mm ID x 1300mm L

Hose, Joystick Supply Or Drain, 1300mm (51 3/16 in.) Length

2шт.

19

87684180

HOSE,9.53mm ID x 620mm L

Hose, Joystick Drain, 620mm (24 13/32 in.) Length

1шт.

20

87604071

HOSE

Hose, Joystick Supply, 680mm (26 3/4 in.) Length

1шт.

21

87573371

ADAPTER

Adapter 3/8 in. Male X 3/8 in. Female; Incl 22, 23

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
