(09-22F) - NOISE CONTROL - CONSOLE (MODELS WITH PILOT CONTROL)

Запчасти Case 440 (09-22F) - NOISE CONTROL - CONSOLE (MODELS WITH PILOT CONTROL) (09) - CHASSIS

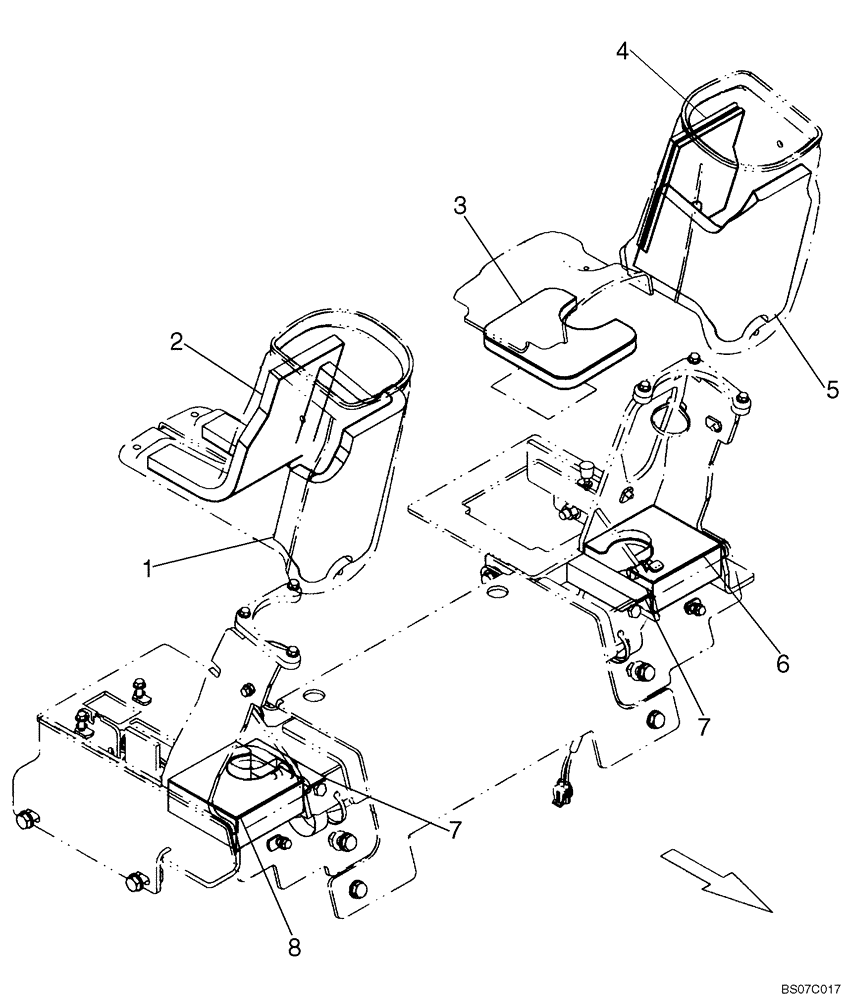

Схема запчастей Case 440 - (09-22F) - NOISE CONTROL - CONSOLE (MODELS WITH PILOT CONTROL) (09) - CHASSIS
8
1
7
4
6
5
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87622410

FOAM INSULATION

Sound Pad Right Hand Console Wraparound

1шт.

2

87622411

FOAM INSULATION

Sound Pad Right Hand Console Back

1шт.

3

87622045

FOAM INSULATION

Sound Pad With Barrier Fuse Cover

1шт.

4

87622409

FOAM INSULATION

Sound Pad Left Hand Console Back

1шт.

5

87622406

FOAM INSULATION

Sound Pad Left Hand Console Wraparound

1шт.

6

87620926

FOAM INSULATION

Sound Pad With Barrier Left Hand Console

1шт.

7

86508457

PAD

1шт.

8

87620927

FOAM INSULATION

Sound Pad With Barrier Right Hand Console

1шт.
