Запчасти Case 440 (06-26) - WHEELS (06) - POWER TRAIN

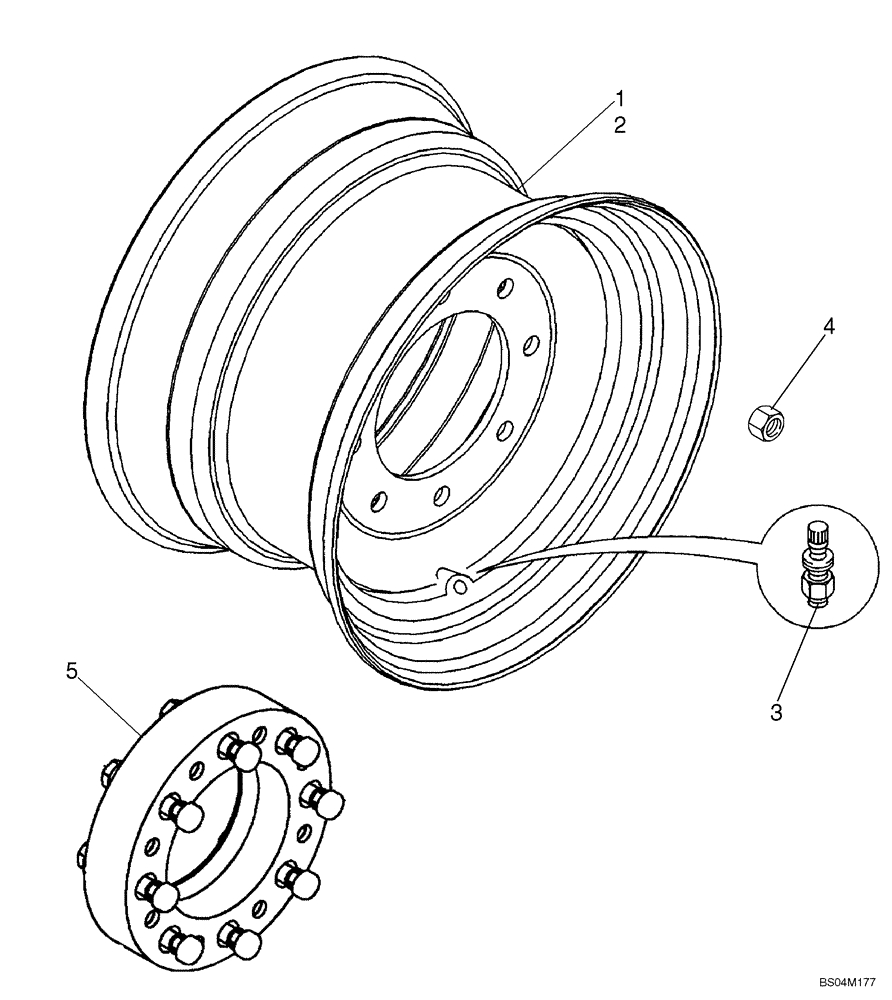

Схема запчастей Case 440 - (06-26) - WHEELS (06) - POWER TRAIN
1
4
2
5
3

Артикул

Название

Примечание

Количество

1

408450A1

RIM

WHEEL 16,5 x 9,75, Stamped Center; Used With 12 x 16.5 Inch Tire; Models With 64 Inch Over Tire Width

4шт.

1

409574A1

RIM

WHEEL 16.5 x 9.75, Stamped Center; Used With 12 x 16.5 Inch Tire; Models With 71 Inch Over Tire Width

4шт.

2

409174A2

RIM

WHEEL 16.5 x 12, Stamped Center; Used With 33/15.5 x 16.5 Tire; Models With 70 Inch Over Tire Width

4шт.

3

294579A1

VALVE STEM

4шт.

4

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

Lug, Hex, M16, 90 deg Taper

32шт.

5

451855A1

SPACER

WHEEL SPACER KIT; Includes (4) Spacers, (32) 5/8 x 2-1/8 NF Hex Flange Bolts, (32) 5/8 NF Hex Flange Nuts

1шт.

Выбрано товаров: 6
