(06-16) - PUMP, GEAR (WITHOUT HIGH FLOW)

Запчасти Case 440 (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN

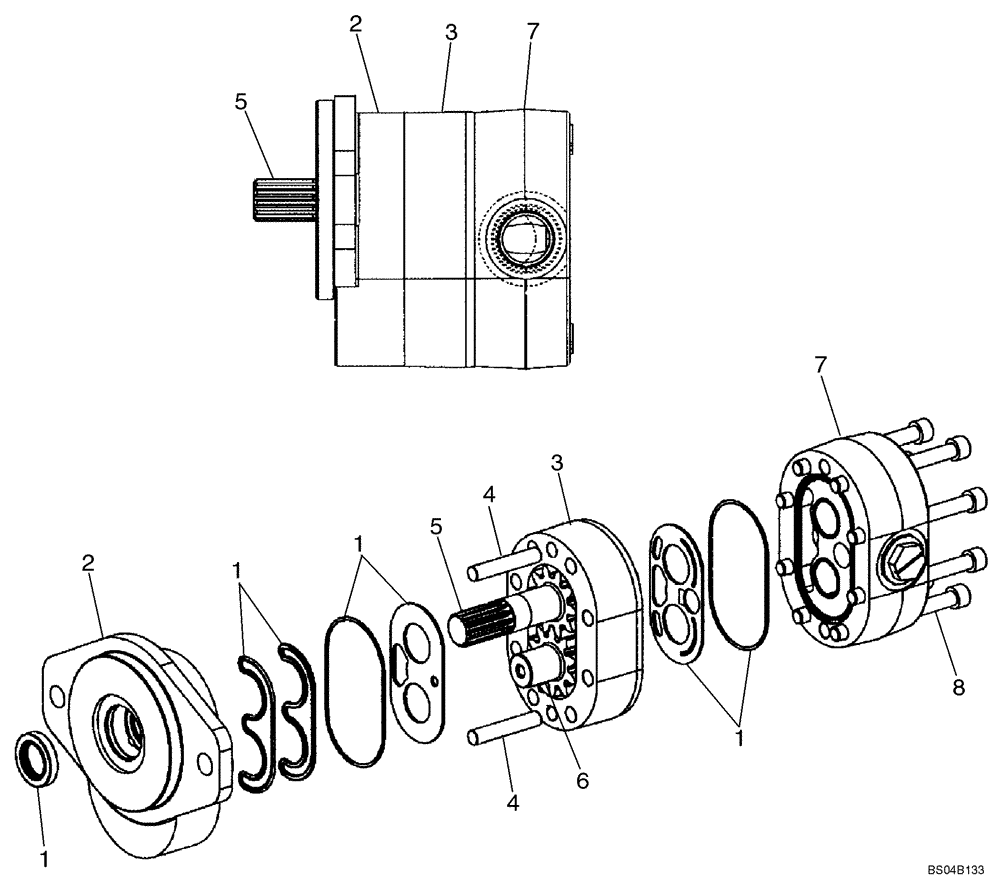

Схема запчастей Case 440 - (06-16) - PUMP, GEAR (WITHOUT HIGH FLOW) (06) - POWER TRAIN
5
5
6
1
7
1
4
2
1
3
4
7
1
8
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87024695

PUMP,36 CC

Incl. 1 - 8; Models Without High Flow

1шт.

87024695R

REMAN-HYD PUMP

440 NA BSN N8M474469, 440 EU BSN N8M407542 (2/05-0

1шт.

87024695C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87042214

SEAL KIT

Seal; Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Plate, Gear

1шт.

4

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

8шт.
