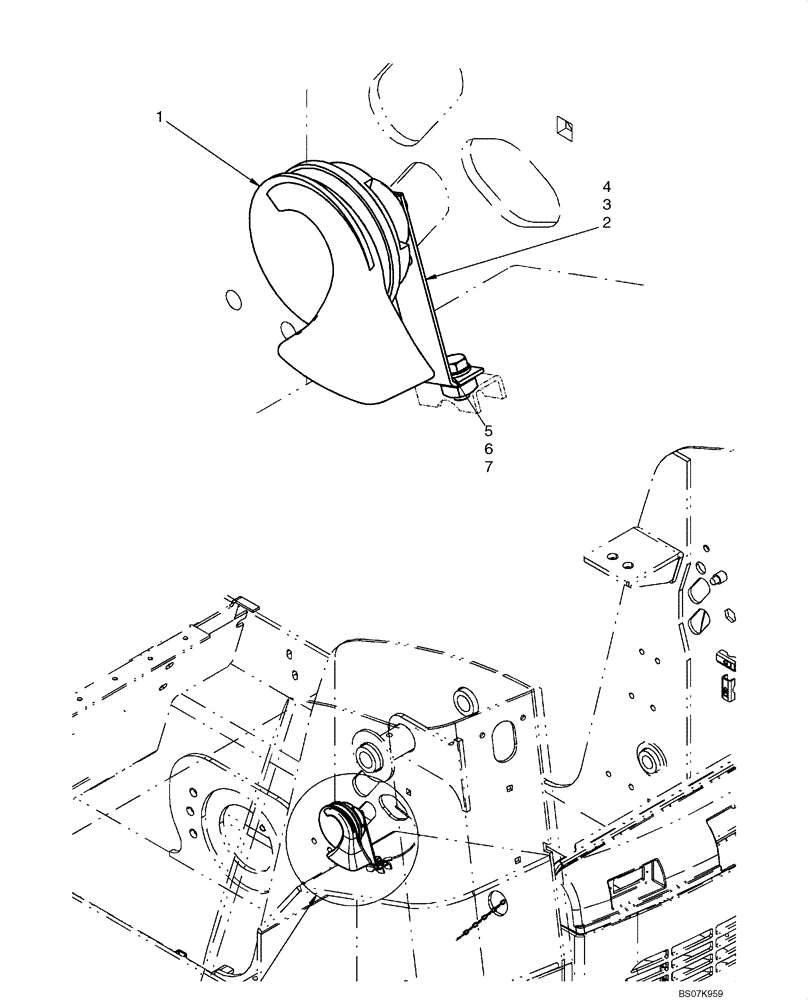

Запчасти Case 435 (04-25) - HORN - MOUNTING (04) - ELECTRICAL SYSTEMS

1

87750955

HORN

1шт.

1

254130A1

HORN

No Longer Used, Order 87750955

1шт.

2

406938A2

ANGLE

Horn Mounting Bracket; If Used, Long Edge 110 mm (4.33 In), Short Edge 23 mm (0.9 In)

1шт.

2

87647041

MOUNTING PLATE

Horn Mounting Bracket; If Used, Long Edge 55 mm (2.16 In), Short Edge 23 mm (0.9 In)

1шт.

3

87030561

NUT,M6 x 1, Cl 8

1шт.

4

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.
