Запчасти Case 435 (04-04B) - ELECTRICAL - CHASSIS HARNESS (04) - ELECTRICAL SYSTEMS

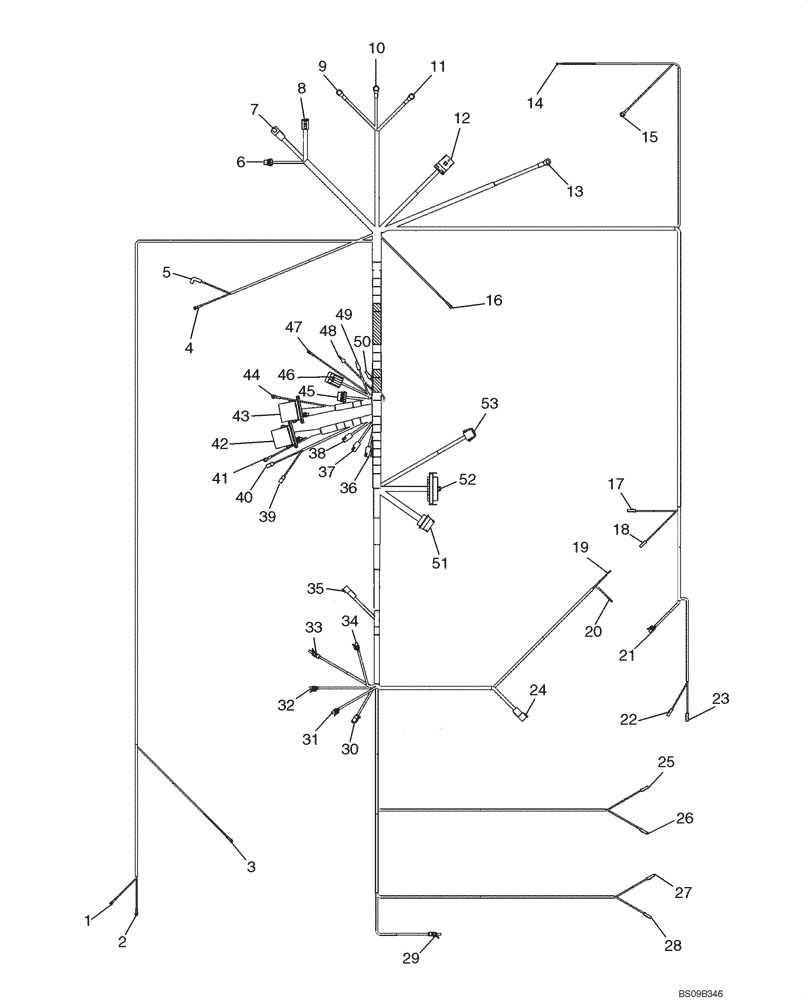

Схема запчастей Case 435 - (04-04B) - ELECTRICAL - CHASSIS HARNESS (04) - ELECTRICAL SYSTEMS
52
6
43
23
27
50
35
53
7
3
5
39
12
28
38
49
44
15
31
29
40
9
4
34
1
11
33
21
26
19
8
22
37
46
17
14
10
45
30
24
16
42
48
2
13
32
47
25
36
51
20
18
41

Артикул

Название

Примечание

Количество

87747920

HARNESS

Chassis Harness HL

1шт.

1

225071C1

TERMINAL CONNECTOR,0.5 - 0.8 mm2

Back-Up Alarm Power

1шт.

2

225071C1

TERMINAL CONNECTOR,0.5 - 0.8 mm2

Back-Up Alarm Ground

1шт.

3

225072C1

CONNECTOR, ELEC

CONNECTOR Fuel Level Sender

1шт.

4

446658

TERMINAL CONNECTOR

Ground Heater Relay Ground

1шт.

5

NSS

NOT SOLD SEPARAT

Ground Heater Relay Feed; CNH Style 16

1шт.

6

256340A1

CONNECTOR, ELEC

CONNECTOR Hyd Coupler Valve

1шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

Front Electric Connector

1шт.

8

225389C1

CONNECTOR, ELEC

CONNECTOR Road Lights

1шт.

9

225066C1

TERMINAL CONNECTOR,3 - 5 mm2

Engine Ground

1шт.

10

225066C1

TERMINAL CONNECTOR,3 - 5 mm2

Engine Ground

1шт.

11

225066C1

TERMINAL CONNECTOR,3 - 5 mm2

Engine Ground

1шт.

12

NSS

NOT SOLD SEPARAT

54201016; Engine Connector

1шт.

13

225037C1

TERMINAL CONNECTOR,19 - 20 mm2

Power Dist Point

1шт.

14

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Horn Power

1шт.

15

225060C1

CONNECTOR, ELEC

CONNECTOR Horn Ground

1шт.

16

225072C1

CONNECTOR, ELEC

Hyd Temp Sender

1шт.

17

279658A1

CONNECTOR, ELEC

CONNECTOR LH Rear Position Light

1шт.

18

279658A1

CONNECTOR, ELEC

CONNECTOR LH Rear Position Light

1шт.

19

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Acc Power Outlet

1шт.

20

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

Acc Power Outlet

1шт.

21

256340A1

CONNECTOR, ELEC

CONNECTOR Rear Work Light

1шт.

22

279658A1

CONNECTOR, ELEC

CONNECTOR RH Rear Positon Light

1шт.

23

279658A1

CONNECTOR, ELEC

CONNECTOR RH Rear Positon Light

1шт.

24

225350C1

ELEC CONNECTOR,Male, 6 Pin

RH Handle Connection

1шт.

25

279658A1

CONNECTOR, ELEC

CONNECTOR Back-Up Alarm Switch 2

1шт.

26

279658A1

CONNECTOR, ELEC

CONNECTOR Back-Up Alarm Switch 2

1шт.

27

279658A1

CONNECTOR, ELEC

CONNECTOR Back-Up Alarm Switch Power

1шт.

28

279658A1

CONNECTOR, ELEC

CONNECTOR Back-Up Alarm Switch 1

1шт.

29

245482C1

ELEC CONNECTOR,2 Pin

Hi-Flow Solenoid

1шт.

30

225316C1

ELEC CONNECTOR,Female, 2 Pin

Brake Release Sloenoid

1шт.

31

256340A1

CONNECTOR, ELEC

CONNECTOR Loader Valve Solenoid

1шт.

32

256340A1

CONNECTOR, ELEC

CONNECTOR Loader Valve Solenoid

1шт.

33

245482C1

ELEC CONNECTOR,2 Pin

Hyd Charge Power Switch

1шт.

34

256340A1

CONNECTOR, ELEC

CONNECTOR 2 Speed Solenoid

1шт.

35

225326C1

ELEC CONNECTOR,Male, 4 Pin

Seat Switch

1шт.

36

NSS

NOT SOLD SEPARAT

Main Power Pol Diode; CNH Style 24

1шт.

37

NSS

NOT SOLD SEPARAT

Lights Diode #1; CNH Style24

1шт.

38

NSS

NOT SOLD SEPARAT

Lights Diode #2; CNH Style24

1шт.

39

279658A1

CONNECTOR, ELEC

CONNECTOR Alt Resist Excite

1шт.

40

279658A1

CONNECTOR, ELEC

CONNECTOR Alt Resist Excite

1шт.

41

200329

TERMINAL

CONNECTOR Rtmr Ground

1шт.

42

NSS

NOT SOLD SEPARAT

87642917; Rtmr Power Center

1шт.

43

NSS

NOT SOLD SEPARAT

87642917; Rtmr Power Center

1шт.

44

200329

TERMINAL

CONNECTOR Rtmr Ground

1шт.

45

256346A1

CONNECTOR, ELEC

CONNECTOR Auxilary Override Connection

1шт.

46

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR Auxilary Override Connection

1шт.

47

225072C1

CONNECTOR, ELEC

CONNECTOR Hyd Filter Pr Switch

1шт.

48

NSS

NOT SOLD SEPARAT

EU/NA Configure Connector; DTHD-061-12-S-E003

1шт.

49

NSS

NOT SOLD SEPARAT

NA Lights Configure; DTHD-04-1-12-P-E003

1шт.

50

NSS

NOT SOLD SEPARAT

EU Lights Configure; DTHD-04-1-12-P-E003

1шт.

51

291661A1

CONNECTOR, ELEC

CONNECTOR Chassis Bulkhead

1шт.

52

256356A1

CONNECTOR, ELEC

CONNECTOR Chassis Bulkhead

1шт.

53

225408C1

CONNECTOR, ELEC

CONNECTOR LH Handle Connection

1шт.

Выбрано товаров: 54
