Запчасти Case 435 (09-71) - DECALS - DANISH, DUTCH, FINNISH (09) - CHASSIS

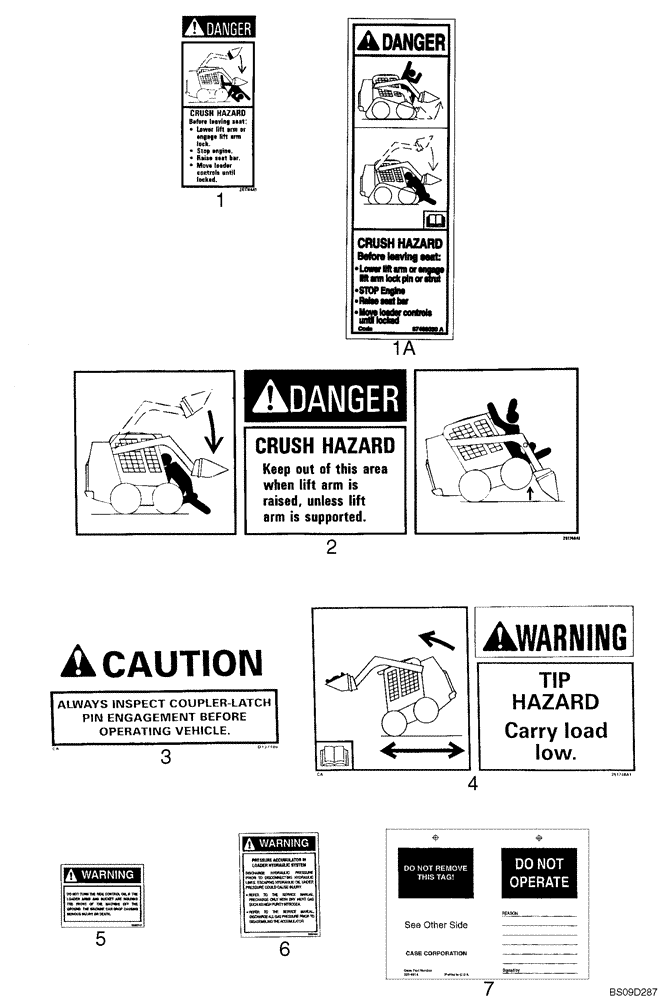

Схема запчастей Case 435 - (09-71) - DECALS - DANISH, DUTCH, FINNISH (09) - CHASSIS
2
5
4
6
7
3
1a
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DANISH

1шт.

1

297363A1

DECAL

Danger, Crush Hazard

1шт.

1a

84160186

Danger, Exiting

1шт.

2

297391A1

DECAL

Danger, Crush Hazard

1шт.

3

175492A1

DECAL

Caution, Always Inspect

1шт.

4

297377A1

DECAL

Warning, Tip Hazard

1шт.

5

256455A1

ADHESIVE

Warning, Ride Control

1шт.

6

256466A1

ADHESIVE

Warning, Accumulator

1шт.

7

182609A1

DECAL

Do Not Operate

1шт.

REF

INSTRUCTION

DUTCH

1шт.

1

434007A1

DECAL

Danger, Crush Hazard

1шт.

1a

84160187

Danger, Exiting

1шт.

2

297392A1

DECAL

Danger, Crush Hazard

1шт.

3

175493A1

DECAL

Caution, Always Inspect

1шт.

4

297378A1

DECAL

Warning, Tip Hazard

1шт.

5

256463A1

ADHESIVE

Warning, Ride Control

1шт.

6

256474A1

ADHESIVE

Warning, Accumulator

1шт.

7

182596A1

WARNING DECAL

Do Not Operate

1шт.

REF

INSTRUCTION

FINNISH

1шт.

1

297365A1

DECAL

Danger, Crush Hazard

1шт.

1a

84160188

Danger, Exiting

1шт.

2

297393A1

DECAL

Danger, Crush Hazard

1шт.

3

297409A1

DECAL

Caution, Always Inspect

1шт.

4

297379A1

DECAL

Warning, Tip Hazard

1шт.

5

256461A1

DECAL

Warning, Ride Control

1шт.

6

256472A1

ADHESIVE

Warning, Accumulator

1шт.

7

197380A1

TAG

Do Not Operate

1шт.

Выбрано товаров: 27
