Запчасти Case 435 (09-67) - DECALS (09) - CHASSIS

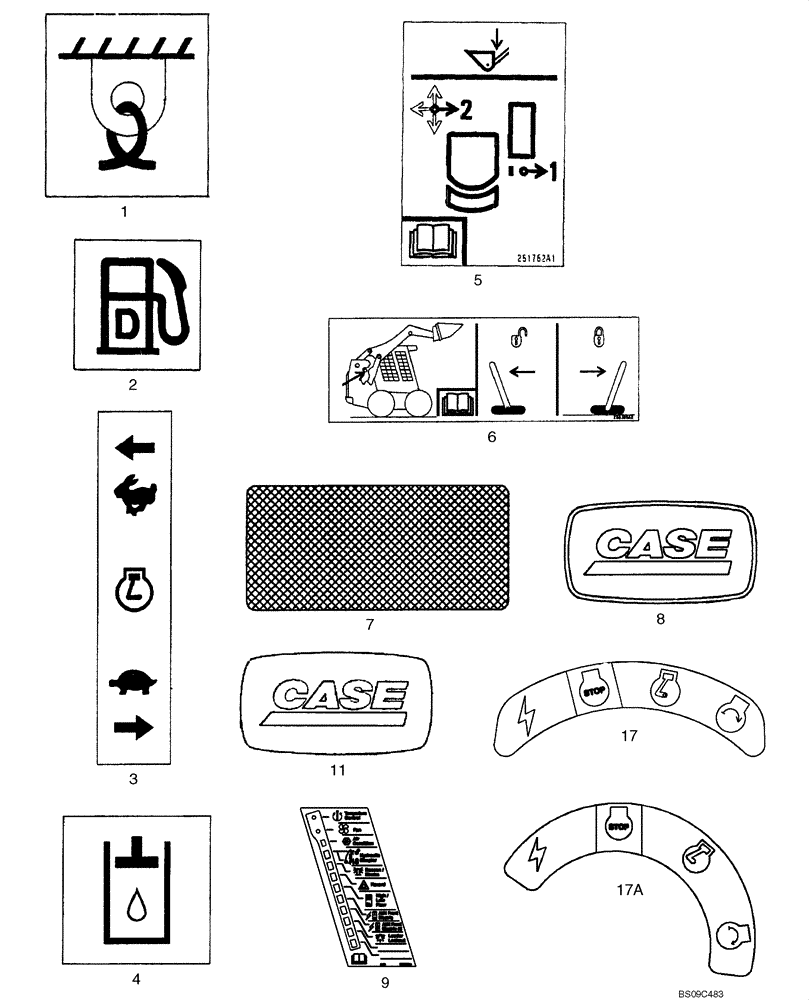

Схема запчастей Case 435 - (09-67) - DECALS (09) - CHASSIS
2
17a
7
9
4
3
1
11
8
6
17
5

Артикул

Название

Примечание

Количество

1

139728A1

DECAL

Decal, Tie Down

1шт.

2

139879A1

DECAL

Decal, Diesel Fuel

1шт.

3

251752A1

DECAL

Decal, Throttle

1шт.

4

251753A1

DECAL

Decal, Hydraulic Fluid

1шт.

5

251762A1

DECAL

Decal, Lift Arm Bypass

1шт.

6

256365A2

DECAL

Decal, Lock/Unlock

1шт.

7

294752A1

REFLECTOR,94mm L X 44mm W

Decal, Red Reflector

1шт.

8

87429186

EMBLEM

Decal, CASE Engine

1шт.

9

87733935

DECAL

Decal, Option Panel, LH Console

1шт.

10

87735655

DECAL

Key Switch; If Used

1шт.

10a

87629079

DECAL

Decal, Key Switch

1шт.

11

87415931

DECAL

Decal, Fuel And Oil Filter

1шт.

Выбрано товаров: 12
