Запчасти Case 435 (09-56[01]) - HEATER SYSTEM (09) - CHASSIS

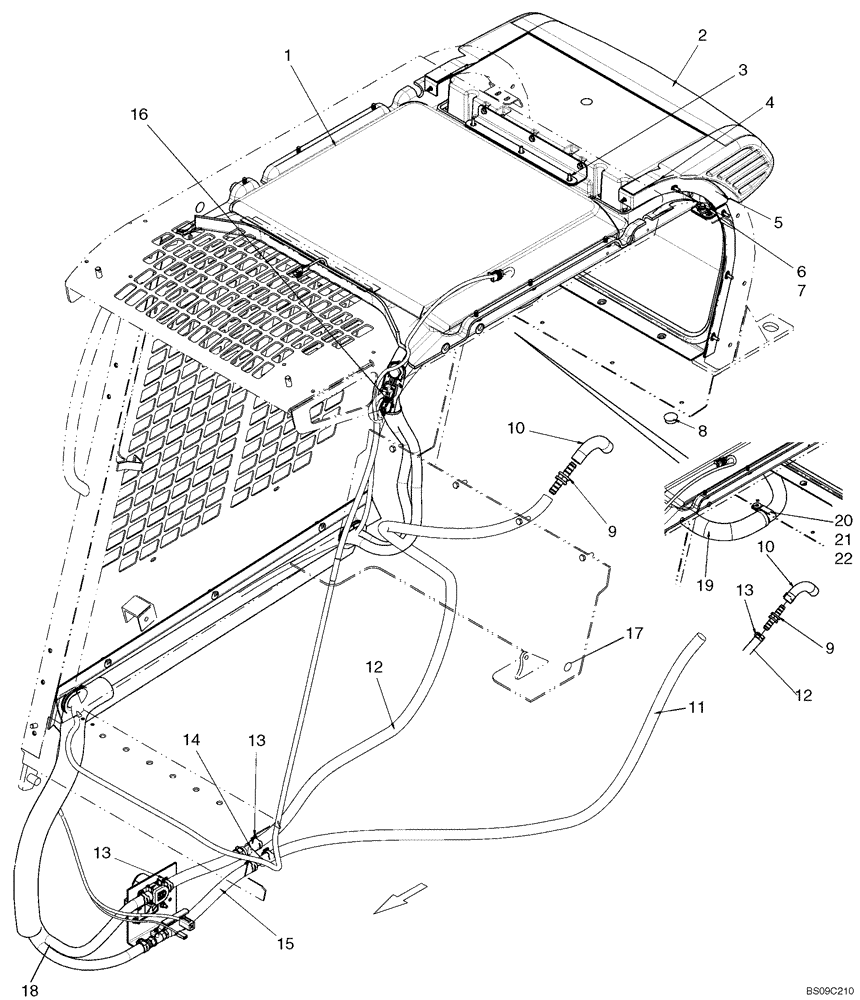

Схема запчастей Case 435 - (09-56[01]) - HEATER SYSTEM (09) - CHASSIS
6
15
7
14
17
8
10
12
16
22
9
11
13
5
21
2
10
13
4
9
1
3
20
12
13
18
19

Артикул

Название

Примечание

Количество

87639907

SERVICE KIT

Kit, Deluxe Heater; Incl 1 - 22

1шт.

1

REF

INSTRUCTION

Heater System; See Fig 09-53

1шт.

2

84129072

Heater Assy; Incl 87653394 And 84129072

1шт.

2

87653394

HEATER

Heater Assembly; See Fig 09-54; If Used

1шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

4

87450833

TAPE

If Used

2шт.

5

291308

SEALING STRIP,0.75" W x 0.5" Thick

580mm (22 13/16 in.); If Used

1шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

7

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

8

86625129

PLUG,Dome, 1" Hole, Nylon

2шт.

9

87617165

ADAPTER

Connector, Hose Barb

1шт.

10

87617163

HEATER HOSE,15.00 mm ID, 18.00 mm ID x 73.00 mm, SAE 20R4

Formed Heater Supply

1шт.

11

87610547

HEATER HOSE,15.88 mm ID x 1650.00 mm, SAE 20R3

Heater Return, If Used

1шт.

11

87715142

HEATER HOSE,15.75" mm ID, 975.00 mm, SAE 20R3

1шт.

12

87610546

HEATER HOSE,15.88 mm ID x 2170.00 mm, SAE 20R3

Heater Supply, If Used

1шт.

12

87715141

HEATER HOSE,15.75" mm ID, 1635.00 mm, SAE 20R3

1шт.

12

84143777

Hose, Heater Supply, 1478mm (58.19in)

1шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

6-10шт.

14

87610315

TUBE,15.9 mm OD x 79.4, 56.4 mm L

"H" Fitting

1шт.

15

87610542

HEATER HOSE,15.88 mm ID x 285.00 mm, SAE J20

Heater Supply, If Used

2шт.

15

87715139

HOSE,0.63" ID, SAE 20R3

Heater Supply H-Fitting

2шт.

16

87555250

PLUG

A/C Switch Plug

1шт.

17

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia, Lexan

3шт.

18

87438213

HEATER HOSE,15.88mm ID x 3215mm L, SAE 20R3

Supply

2шт.

19

87493482

HOSE

Heater Hose Guard

1шт.

20

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

2шт.

21

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

22

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

Выбрано товаров: 28
