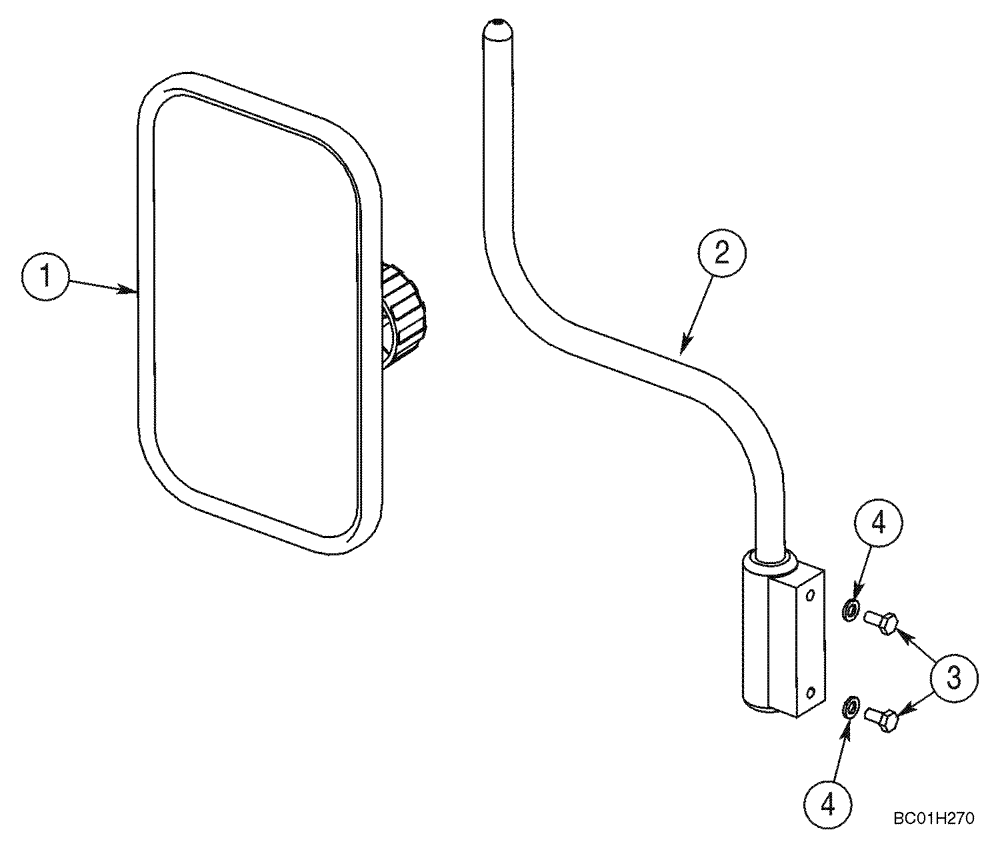

Запчасти Case 435 (09-53) - MOUNTING MIRROR, REAR VIEW (09) - CHASSIS

REF

INSTRUCTION

EUROPE ONLY

1шт.

1

235994A1

MIRROR,264mm L x 162mm W

Exterior

1шт.

2

310860A1

SUPPORT

1шт.

3

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
