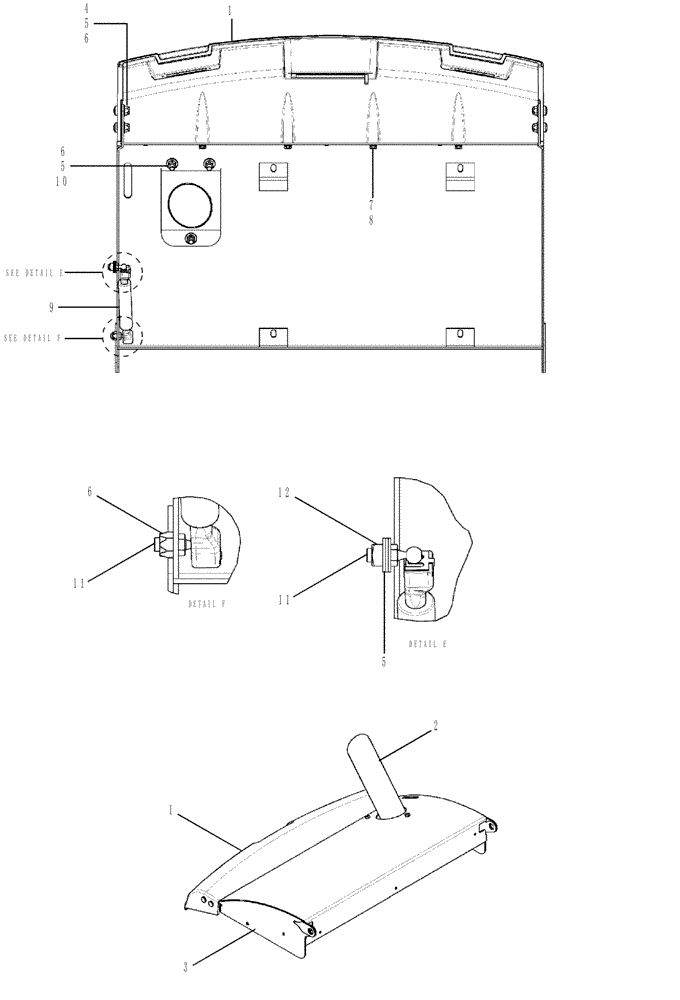

Запчасти Case 435 (09-51) - HOOD (09) - CHASSIS

1

426787A1

COWLING

Lower Hood

1шт.

2

84209059

EXHAUST SYSTEM PIPE

1шт.

3

NSS

NOT SOLD SEPARAT

Hood

1шт.

4

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

4шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

6

9628098

NUT,M8 x 1.25, Cl 10

8шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

9

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist Strut 150 lb; If Used

1шт.

9

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist Strut 230 lb; If Used

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

11

189609A1

BALL STUD,M8 x 1.25

Ball Stud

2шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.
