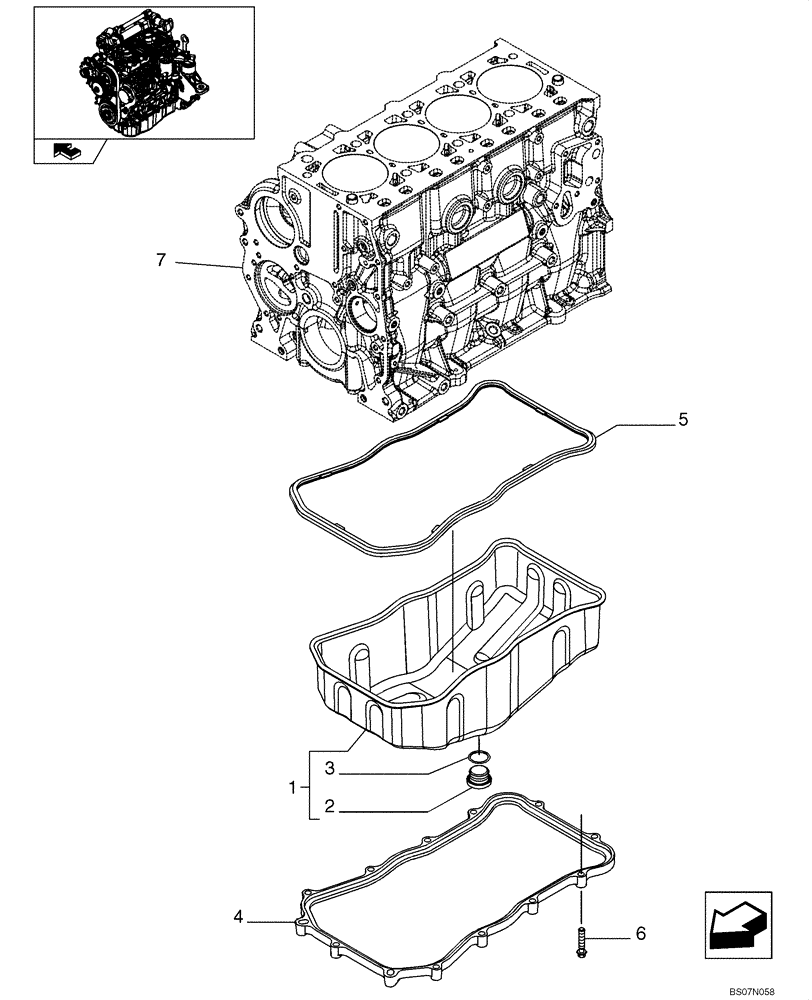

Запчасти Case 435 (02-12) - OIL SUMP & RELATED PARTS (87380450) (02) - ENGINE

1

504179445

ENGINE OIL PAN

Engine Oil Pan

1шт.

2

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

3

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

4

504179442

SPACER

Spacer

1шт.

5

504179443

OIL PAN GASKET SET

Gasket

1шт.

6

16586624

SCREW,M8 x 35mm

M8 x 35 mm

13шт.

7

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.
