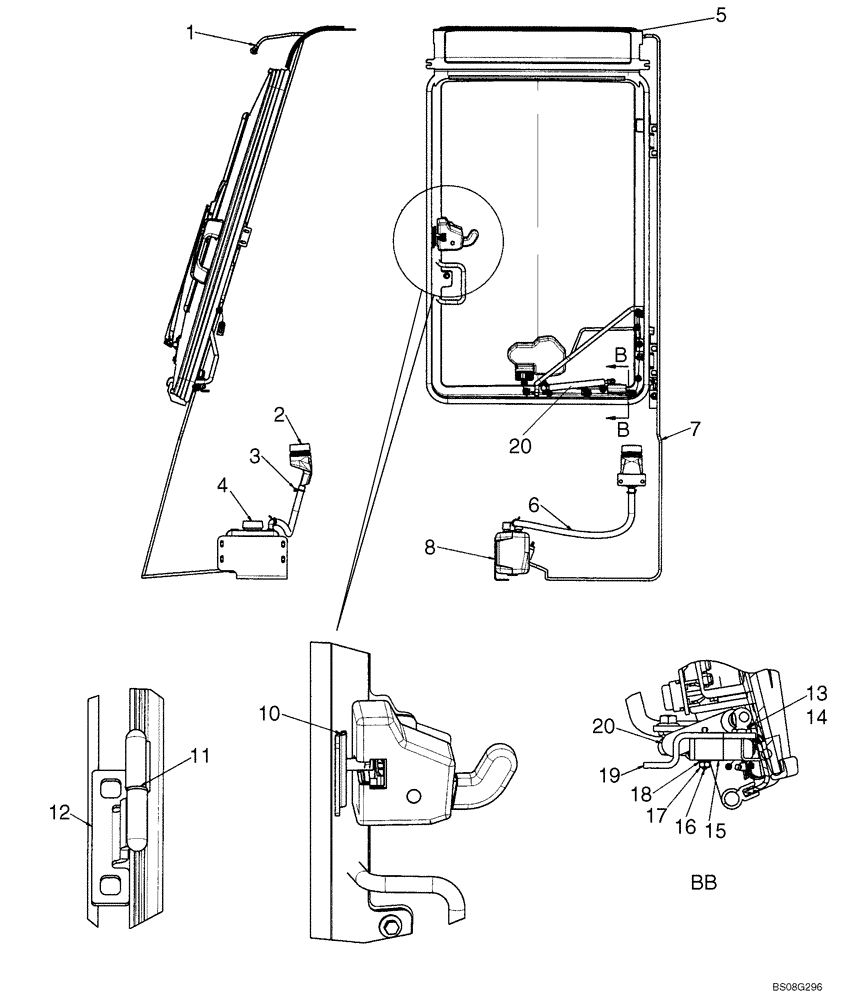

Запчасти Case 435 (09-22) - CAB DOOR - WASHER SYSTEM, SHOCK, LATCH (09) - CHASSIS

1

87655056

NOZZLE

Washer Nozzle

1шт.

2

87655055

FILLER

Remote Fill

1шт.

3

516742

CLAMP,0.73" - 0.77"

Spring Hose Clamp, 3/4 in.

2шт.

4

87655053

BOTTLE

Washer Bottle

1шт.

5

REF

INSTRUCTION

Visor; See Fig 09-32

1шт.

6

87678401

Vinyl Hose, 5/8 in. X 21 5/8 in. Length

1шт.

7

87343662

WINDSHIELD WASHER

Windshield Washer Tubing, 3.5mm ID X 2800mm Length

1шт.

8

87672011

BRACKET

Washer Bottle Bracket

1шт.

9

REF

INSTRUCTION

Door; See Fig 09-31

1шт.

10

87642588

LATCH

Latch Striker

1шт.

11

87599753

SPACER,10.21mm ID x 15.88mm OD x 2.03mm L

2шт.

12

87672017

HINGE

Door Hinge, Black

2шт.

13

87581669

BALL STUD,M8 x 29.50mm L

Ball Stud, 10mm Dia. Ball X M8 X 13mm Stud

1шт.

14

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

15

87051110

DOOR SWITCH

Seat Bar Switch

1шт.

16

87680073

U-BOLT

U-Bolt, Switch Mount

1шт.

17

87622767

NUT

2шт.

18

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

2шт.

19

87672000

BRACKET

Door Switch Bracket

1шт.

20

87581689

GAS STRUT

Gas Shock, Extended Length 365mm

1шт.
