Запчасти Case 435 (08-11) - HYDRAULICS, ATTACHMENT - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS

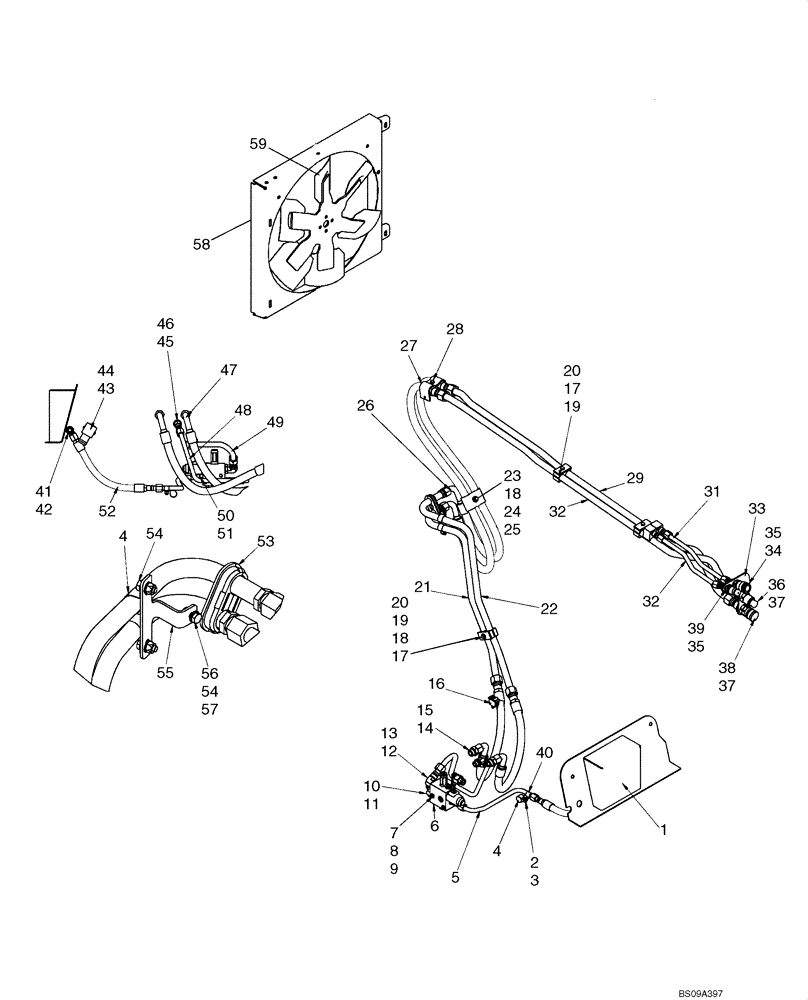

Схема запчастей Case 435 - (08-11) - HYDRAULICS, ATTACHMENT - HIGH FLOW, SUPPLY AND RETURN (08) - HYDRAULICS
25
4
1
22
57
36
20
19
59
47
35
4
12
8
29
48
41
28
50
39
7
32
27
46
18
24
43
58
45
3
15
23
11
33
42
20
49
26
55
14
35
56
40
52
38
32
53
13
44
54
9
34
19
5
21
31
17
37
51
10
2
54
16
37
17
18
6

Артикул

Название

Примечание

Количество

87617665

SERVICE KIT

Kit, High Flow Bi-Directional Gear; Incl 1 - 57

1шт.

1

87438538

ANGLE

Heel Plate, Manual Control Only

1шт.

2

412250

NUT,M8 x 1.25, Cl 8

1шт.

3

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

1шт.

4

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

5

87552530

HYD TUBE,11.7 mm ID x 15.9 mm OD

Tube, High Flow Supply

1шт.

6

87012669

VALVE

Combination Valve; See Fig 08-13

1шт.

7

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

8

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl 11

1шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 13

1шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 15

2шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

16

87414769

SWITCH

Rocker Switch, High Flow

1шт.

17

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

3шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

19

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

3шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER Bar Clamp Top

3шт.

21

87442187

HYD TUBE,25.4 mm OD

Tube, High Flow

1шт.

22

87442186

HYD TUBE,25.4 mm OD x 593.2, 587.2 mm L

Tube, High Flow

1шт.

23

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

24

276432A1

HOSE CLAMP

1шт.

25

371108R1

SPACER,3/8" Pipe x .844"

1шт.

26

87016401

HOSE

Hose, Supply And Return, 1379mm (54 9/32 in.)

2шт.

27

87415965

CLAMP

1шт.

28

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

29

87412452

TUBE,25.40 mm OD x 1507.1, 479.1 mm L

1шт.

30

87412454

TUBE,25.40 mm OD x 1520.6, 414.1 mm L

1шт.

31

87412458

HYD TUBE,15.9 mm OD x 369.9, 37.6 mm L

Tube, Auxiliary

1шт.

32

87412456

HYD TUBE,15.9 mm OD x 369.9, 37.7 mm L

Tube, Auxiliary

1шт.

33

87412449

BRACKET

1шт.

34

393394A1

COUPLING, BREAK AWAY

Female Quick Disconnect, 1/2 in; If Used

1шт.

34

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

35

595460

BHD LOCK NUT,7/8" - 14

2шт.

36

87022672

QUICK MALE COUPLING

Male Coupler, 5/8 in.

1шт.

37

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

38

87022671

COUPLING, QUICK, FEM

Female Coupler, 5/8 in.

1шт.

39

87417308

COUPLING, BREAK AWAY

Male Quick Disconnect, 1/2 in; If Used

1шт.

39

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

40

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

41

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 42

1шт.

42

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

86705581

STEM

Stem 90 Deg Bead Hose 1 1/4 ID X 1 5/8-12; Incl 44

1шт.

44

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

45

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 46

1шт.

46

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

47

87019071

HYDRAULIC HOSE

Tube, Supply And Return

2шт.

48

87436469

HYD TUBE,15.88 mm OD

Tube, High Flow Supply

1шт.

49

87520123

HYD TUBE,16.57 mm ID x 19.05 mm OD x 193.8, 167.5 mm L

Tube, High Flow Return

1шт.

50

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 51

1шт.

51

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

52

87598098

HOSE

Hose, High Flow Supply, 415mm (16 11/32 in.)

1шт.

53

87017999

SUPPORT

2шт.

54

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

55

87458691

BRACKET

1шт.

56

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

57

9628098

NUT,M8 x 1.25, Cl 10

3шт.

58

87720222

SHROUD

If Used

1шт.

59

87680032

FAN,6 Blades, 517.9mm OD

518mm; 24 Degree; If Used

1шт.

Выбрано товаров: 62
