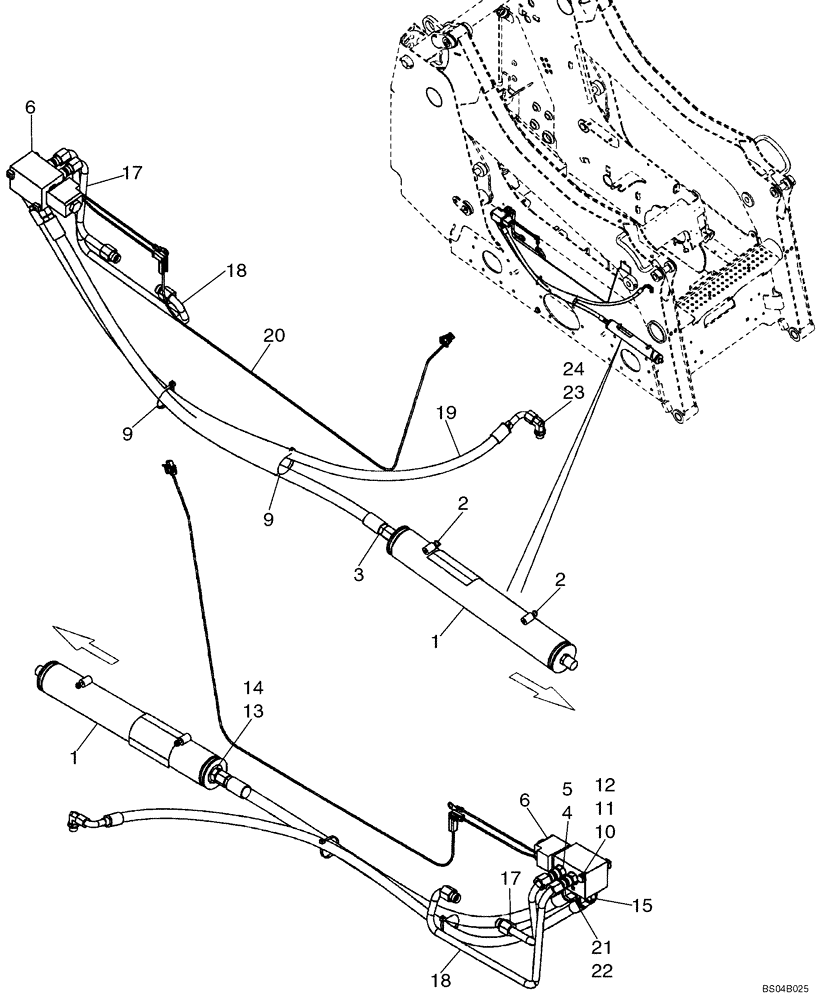

Запчасти Case 435 (08-09) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

87406364

DIA KIT, ADD PROD

Kit, Ride Control; Incl 1 - 27

1шт.

1

87403797

ACCUMULATOR,275 Bar, 0.75L

Hydraulic

1шт.

2

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

3

87445684

HOSE ASSY.

1060 mm (41 3/4 in); Valve To Accumulator

1шт.

4

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl. 5

3шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87428444

VALVE

Ride Control; Solenoid; Incl. 7, 8

1шт.

7

87424684

SEAL KIT

Not Illustrated

1шт.

8

87424685

REPAIR KIT

Solenoid; Not Illustrated

1шт.

9

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

1шт.

10

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

87030567

SQUARE NUT

M8 x 1.25

2шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 14

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 16

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

87436748

HYD TUBE,12.7 mm OD

Valve To Cylinder

1шт.

18

87436749

HYD TUBE,12.7 mm OD

Valve To Cylinder

1шт.

19

87422393

HOSE ASSY.

1390 mm (54-11/16 in); Valve To Tank

1шт.

20

310838A1

HARNESS

Ride Control

1шт.

21

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl. 22

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

23

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 24

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

255927A1

WARNING DECAL

Decal, Warning Ride Control

1шт.

26

304083A1

DECAL

Decal Name, Ride Control

2шт.

27

384260A1

WARNING DECAL,168mm x 88mm H

Pressurized System

1шт.
