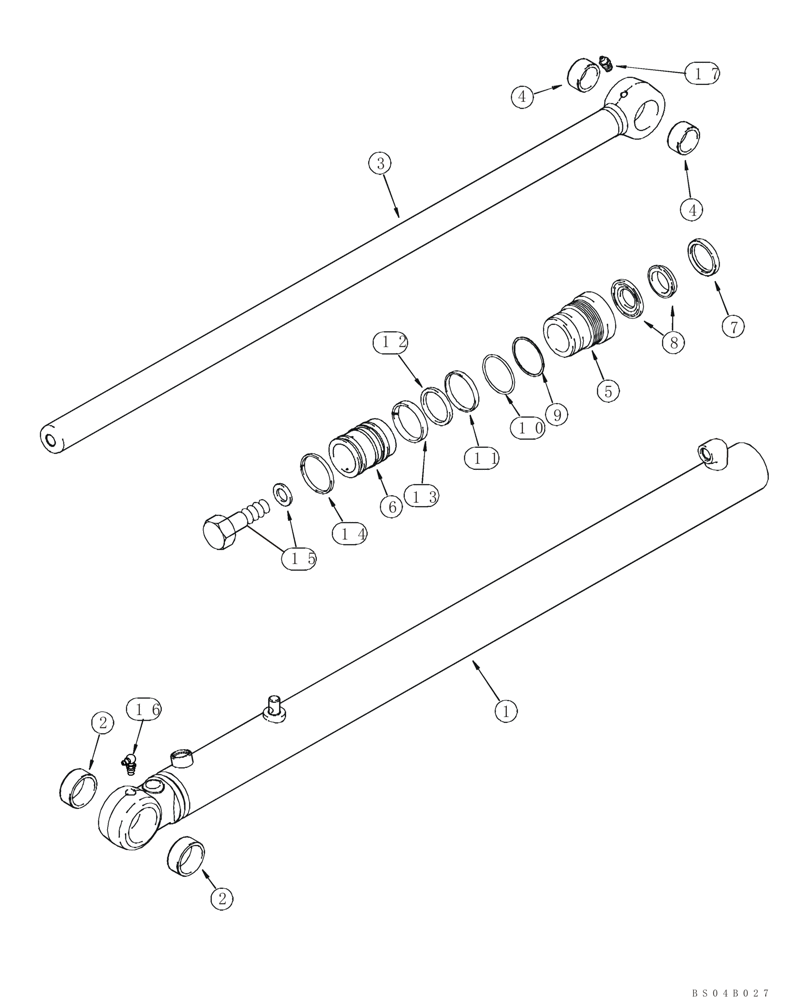

Запчасти Case 435 (08-03) - CYLINDER - LOADER LIFT (08) - HYDRAULICS

REF

INSTRUCTION

2-1/2 INCH INSIDE DIAMETER

1шт.

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

63,5 ID x 1049 mm strk; Loader Lift; Incl. 1 - 18

2шт.

336187A1R

REMAN-HYD CYLINDER

435 TIER 3, ASN N7M425032 (1/08-3/11)

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

1

336188A1

HYD CYL SLEEVE

Incl. 2

1шт.

2

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

3

336190A1

PISTON ROD

Incl. 4

1шт.

4

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

5

279415A2

GLAND

Packing

1шт.

6

193977A1

JACK PISTON

1шт.

198376A2

SEAL KIT

Incl. 7 - 14

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

8

1542875C1

SEAL KIT,44.4mm Rod

Not Serviced Separately; Rod and Buffer Seal; Order 198376A2

1шт.

9

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

10

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

Piston

1шт.

12

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

Loader

1шт.

13

G100714

RING

1шт.

14

191319A1

RING

Cast Iron

1шт.

15

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Bolt And Washer Assy; 3/4 x 2.50

1шт.

16

80719

LUBE NIPPLE,1/8" NPT

1шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.
