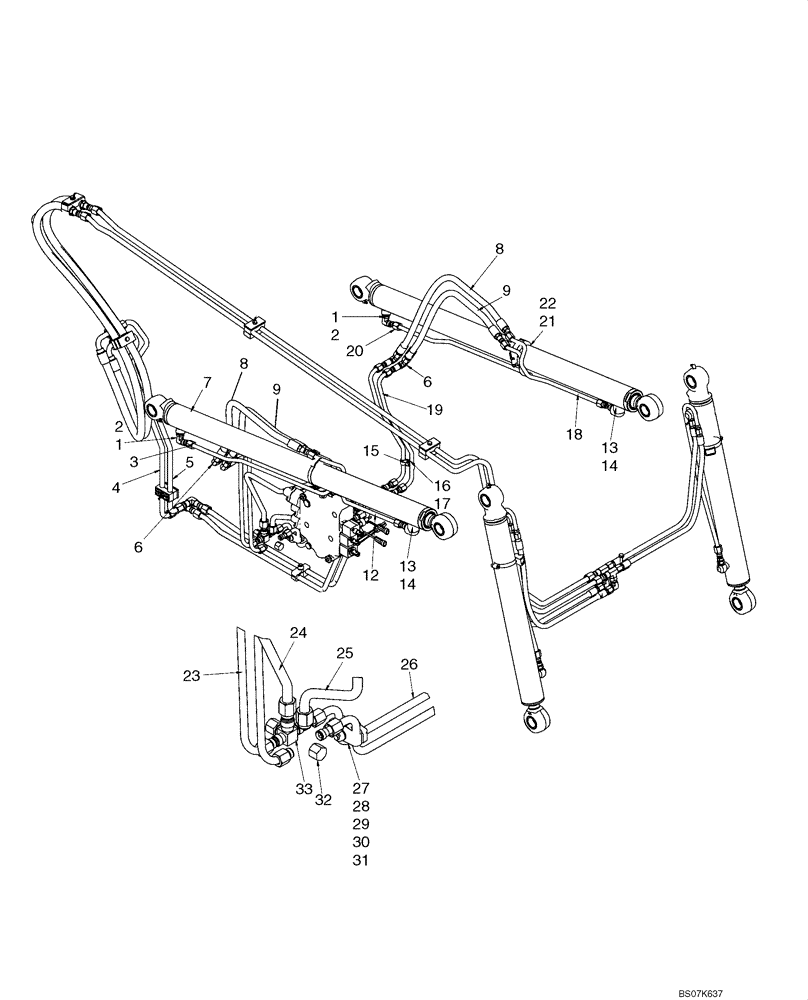

Запчасти Case 435 (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

1

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 2

2шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

3

282734A4

TUBE,651, 126 mm Length

Tube, Lift Cylinder Base End, RH

1шт.

4

418942A1

TUBE

Tube, Curl

1шт.

5

418943A1

HYD TUBE

Tube, Tip

1шт.

6

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

4шт.

7

336187A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

See Fig 08-03

2шт.

336187A1R

REMAN-HYD CYLINDER

435 TIER 3, ASN N7M425032 (1/08-3/11)

2шт.

336187A1C

CORE-HYD CYLINDER

Return number

1шт.

8

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

Hose, Lift Cylinder Rod End, 922mm (36 5/16 in.)

2шт.

9

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

Hose, Lift Cylinder Base End, 892mm (35 1/8 in.)

2шт.

10

87583285

VALVE

Control Valve, Manual Control; See Fig 08-16

1шт.

11

87546974

HYDRAULIC VALVE

Control Valve, Pilot Control; See Fig 08-17

1шт.

12

282736A5

TUBE,454, 96 mm Length

Lift Cylinder Rod End, RH

1шт.

13

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 14

2шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

16

87030567

SQUARE NUT

1шт.

17

708182

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

18

282740A5

TUBE,454, 112 mm Length

Tube, Lift Cylinder Rod End, LH

1шт.

19

87620979

HYD TUBE,12.7 mm OD

Tube, Floor To Wall

2шт.

20

282738A4

TUBE,12.7 mm OD, 651, 126 mm Length

Tube, Lift Cylinder Base End, LH

1шт.

21

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

22

87741014

SADDLE

Saddle, Dual Tube

2шт.

22

255245A1

BLOCK

Saddle, Dual Tube; No Longer Used, Order 87741014

2шт.

23

87520118

HYD TUBE,9.4 mm ID x 12.7 mm OD

Tube, Lift RH

2шт.

24

87520120

HYD TUBE,15.9 mm OD x 350, 346.7 mm L

Tube, Valve Lift (Lower)

1шт.

25

87667455

HYD TUBE,15.9 mm OD

Tube, Valve Lift (Raise)

1шт.

26

87435214

HYD TUBE,12.7 mm OD x 550, 83 mm L

Tube, Lift LH

2шт.

27

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

28

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

29

D120679

CLAMP,Tube, 1/2"

1шт.

30

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

31

86512554

NUT,M10 x 1.5, Cl 10

2шт.

32

262159

CAP,3/4" - 16 Fem JIC

2шт.

33

280107A1

TEE

1шт.
