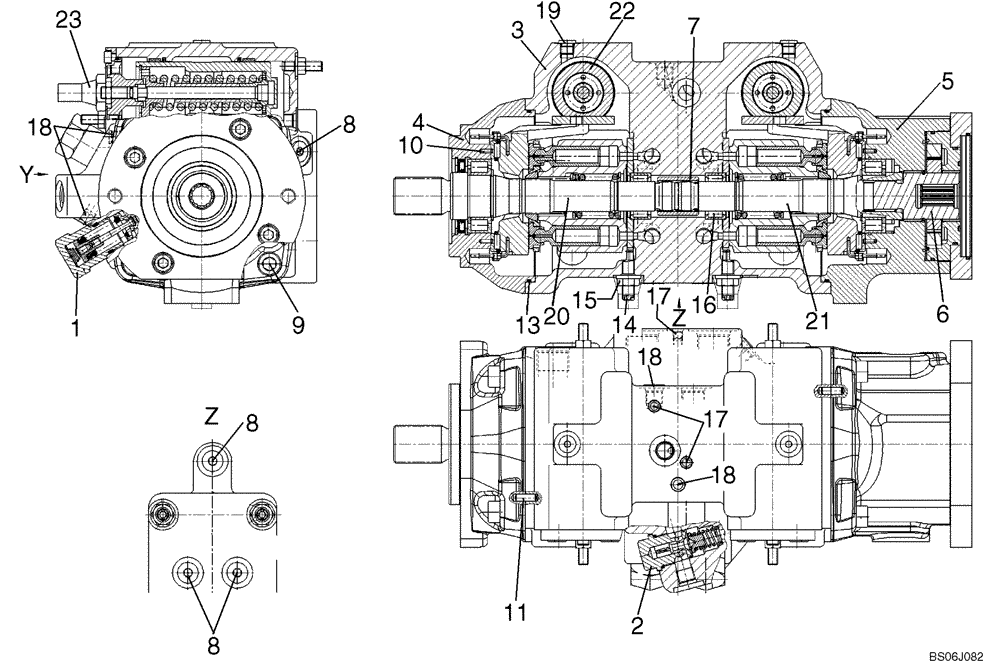

Запчасти Case 435 (06-35) - REXROTH PUMP (PILOT CONTROL) (06) - POWER TRAIN

87619378

PUMP,42.9 CC

Rexroth Pump

1шт.

87619378R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87619378C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87614028

VALVE PRESSURE RELIE

Pressure Relief Valve, 300 Bar; See Fig. 06-36

4шт.

2

87553604

VALVE PRESSURE RELIE

Pressure Relief Valve, 15 - 30 Bar R-Ring Viton; See Fig. 06-37

1шт.

3

87553605

HOUSING

Pump Housing

1шт.

4

87553606

FLANGED BEARING

Bearing, Flange

1шт.

5

87614029

FLANGED BEARING

Bearing, Flange With Bushing

1шт.

6

87553608

ASSEMBLY

Internal Gear Pump; See Fig. 06-38

1шт.

7

87553609

COUPLING

Through Drive Coupling

1шт.

8

87553611

LOCK SCREW

Locking Screw, 9/16 - 18UNF

5шт.

9

87553613

HEX SOC SCREW

Socket Head Screw

8шт.

10

87553614

PIN

Clamping Pin

4шт.

11

87553615

PIN

Cylinder Pin

2шт.

12

87553616

O-RING

O-ring; Not Illustrated

1шт.

13

87553617

O-RING

O-ring

2шт.

14

87553618

SCREW

Eccentric Screw

2шт.

15

87553619

LOCK NUT

Seal, Lock Nut

2шт.

16

87553620

ROLLER BEARING

Plain Roller Bearing

2шт.

17

87553621

PIN

Double Break Off Pin

2шт.

18

87553622

PIN

Double Break Off Pin

2шт.

19

87553612

LOCK SCREW

Locking Screw, 7/16 - 20UNF

2шт.

20

87553599

SERVICE KIT

Rotary Group, RH Rotation; See Fig. 06-39

1шт.

21

87553600

SERVICE KIT

Rotary Group, LH Rotation; See Fig. 06-40

1шт.

22

87553601

CONTROL

Control, Hydraulic; See Fig. 06-41

2шт.

23

87614027

CARTRIDGE

Control Cartridge With Orfice; See Fig. 06-42

1шт.

24

87627399

CAP

Service Caps

1шт.

25

87553610

BEARING

Bearing, Bushing; Not Illustrated

1шт.
